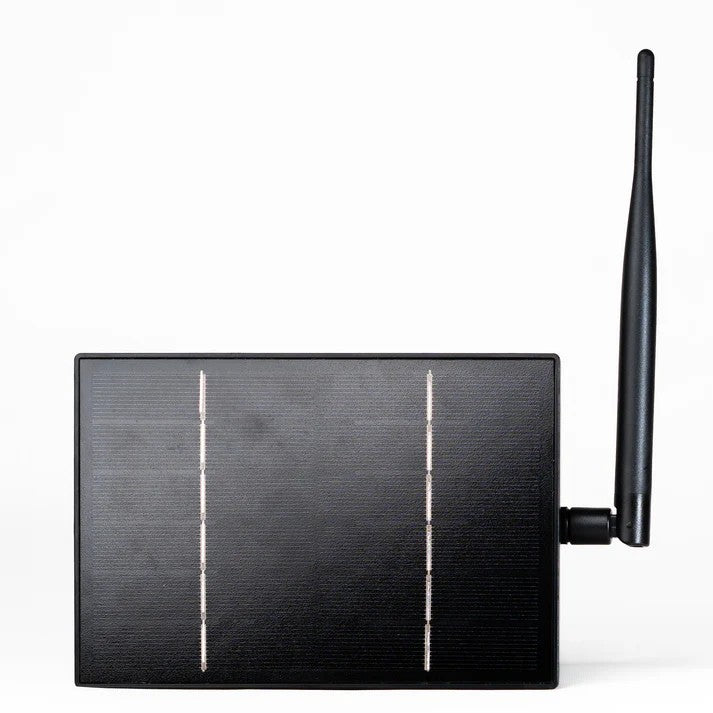

MeshMan™ Power Sipper Solar Node for Meshtastic

Built for 24/7 operation as a stand-alone Meshtastic Node, IP64 Rated for Outdoor Use. This all-in-one node is ready to go out of the box. Just connect the antenna, mount it & switch it on.

- 4W Glass Solar Panel (No cheap Epoxy)
- 7000mAh Battery Capacity (2 x 3500mAh 18650 batteries included)

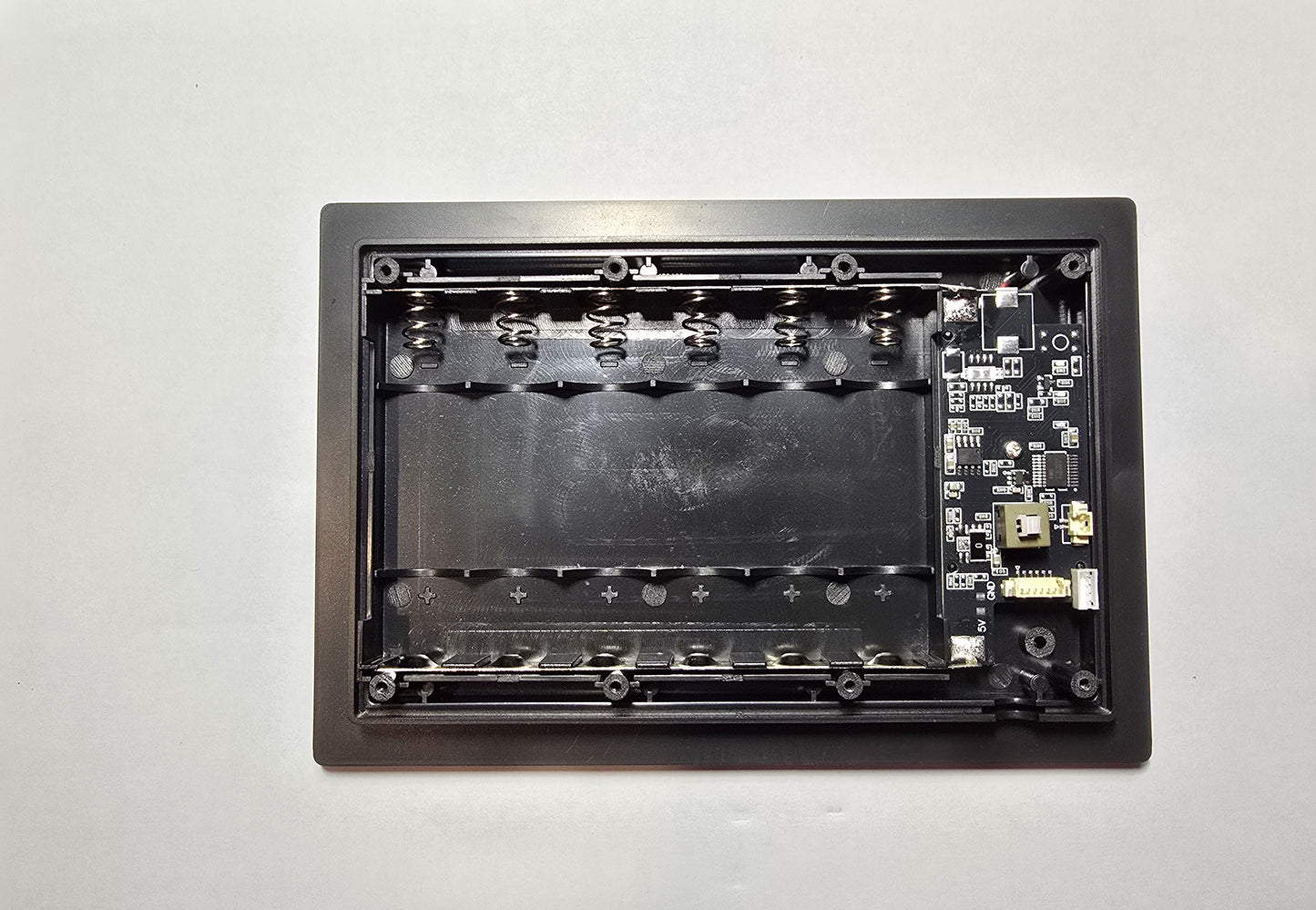

- Dedicated Solar & Battery Managment Board
- IP65 SMA Antenna Connector
- 2.8dBi 90° Antenna

Powered by a Heltec T114 V2 or FakeTec V3, both nRF52 low powered with SX1262 Radio.
The FakeTec V3 variant is assembled in SA, take advantage of the Heltec HT-RA62 Radio with TCXO for high precision RF output.

-Features a ON/OFF Switch to conserve power in transit/storage

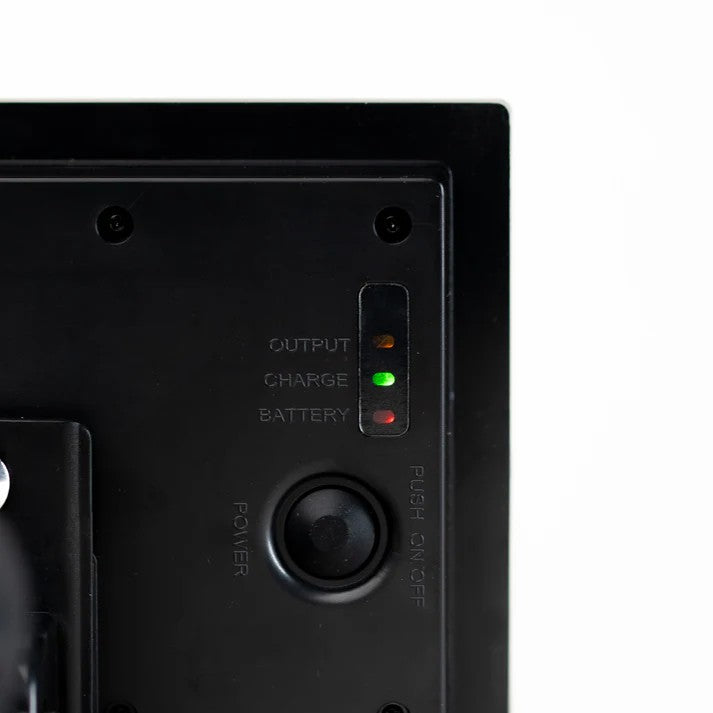

-Indicator Lights for ON, OUTPUT, SOLAR

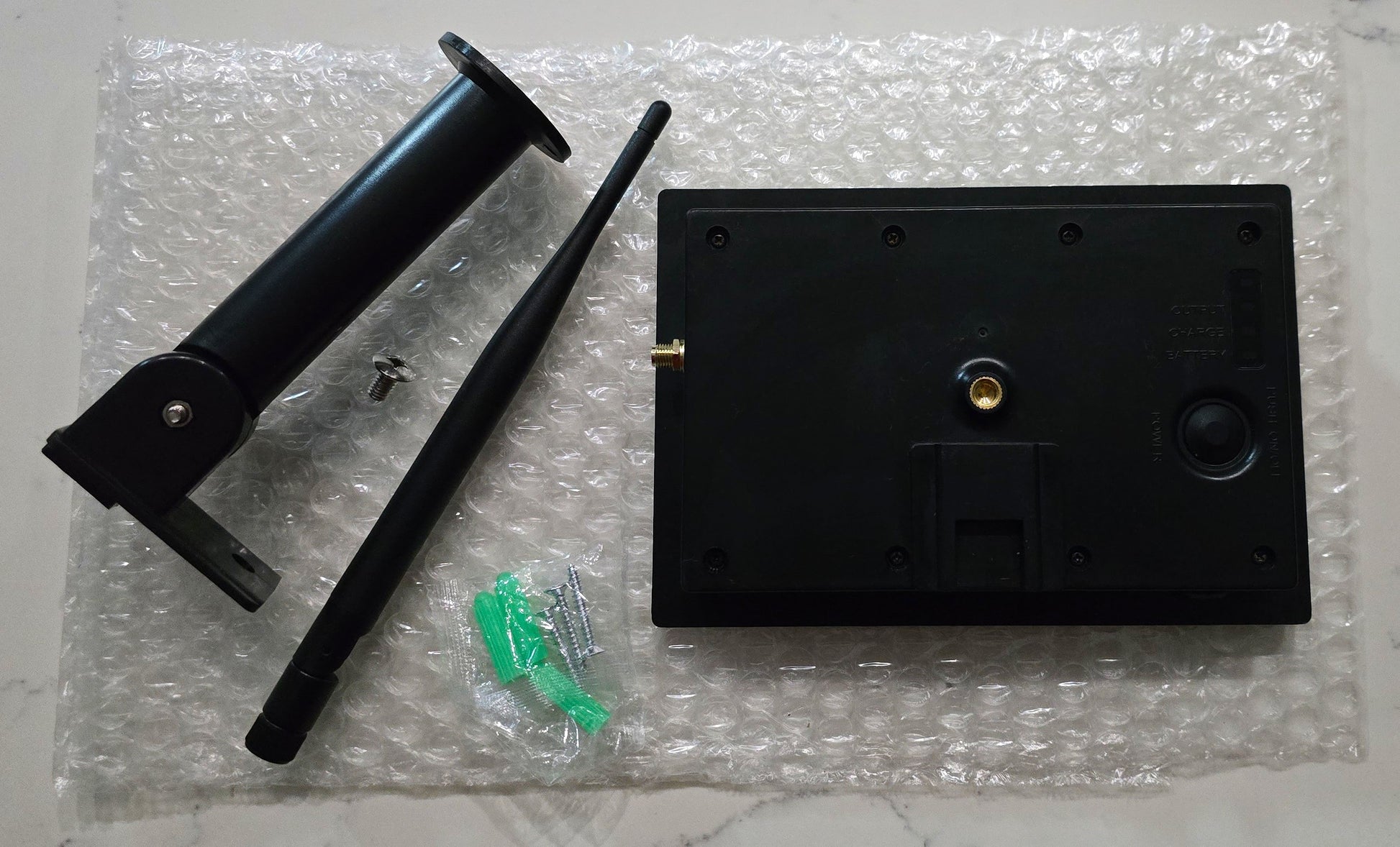

-Supplied with batteries, surface mount bracket and antenna

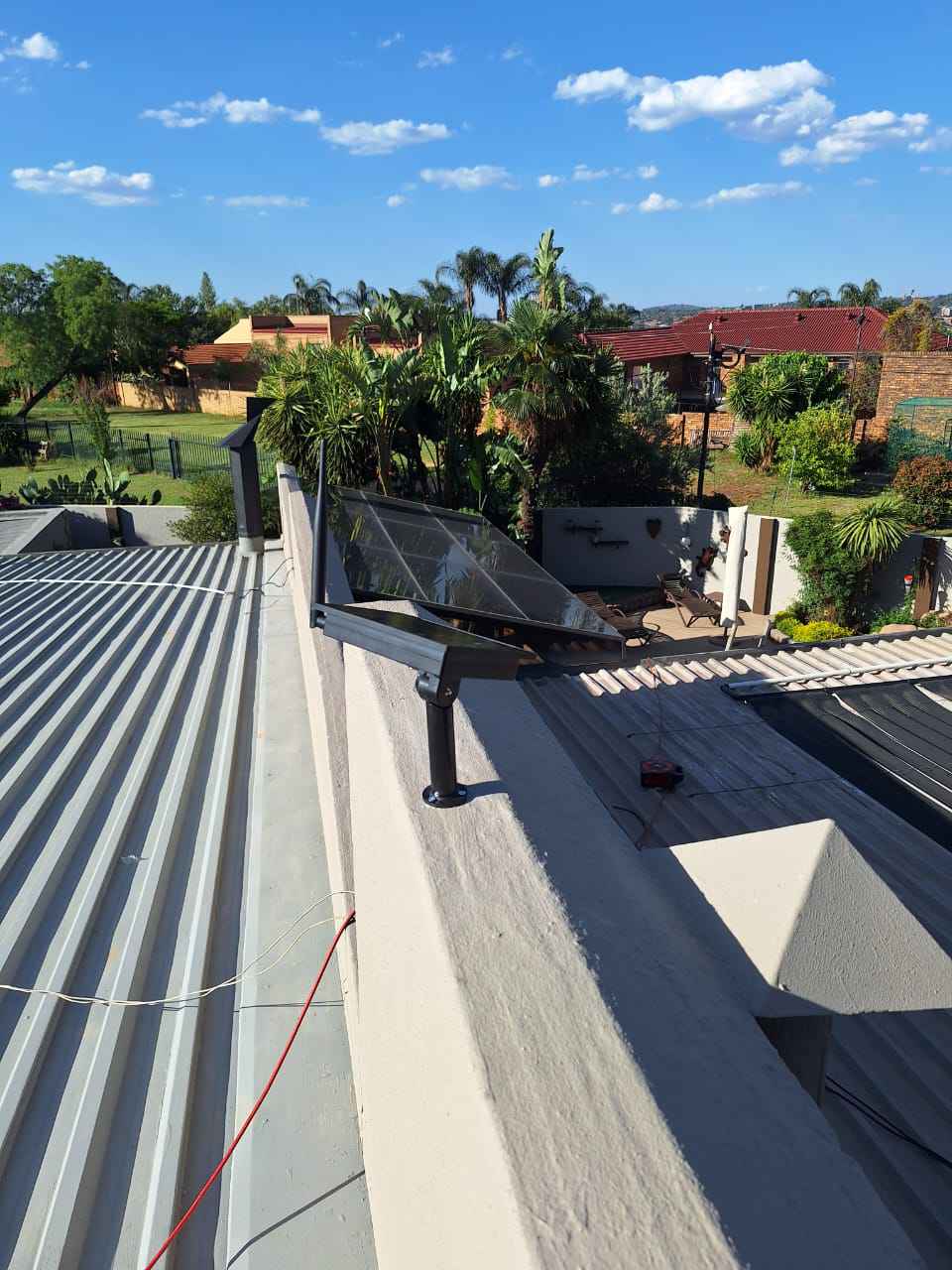

-Threaded rod connection on the rear for unlimited mounting options

Pre-Flashed with Meshtastic Firmware, designed to be used as a Meshtastic router or mast mount node.

BMS Board will automatically cut power to the node at 3.3v and resume power output when the battery has charged to 4v or above. This ensures stable and reliable operation (The main board is a 3v3 design)

Also available as the chassis only, check the selected option before checking out.

Chassis only option comes with:

- 4W Glass Solar Panel (No cheap Epoxy)
- Dedicated Solar & Battery Managment Board
- Mounting Arm

Mast or pole mount 3D Printed Brackets also available

Don't hesitate to contact us if you have any questions: info@smartcasa.co.za
