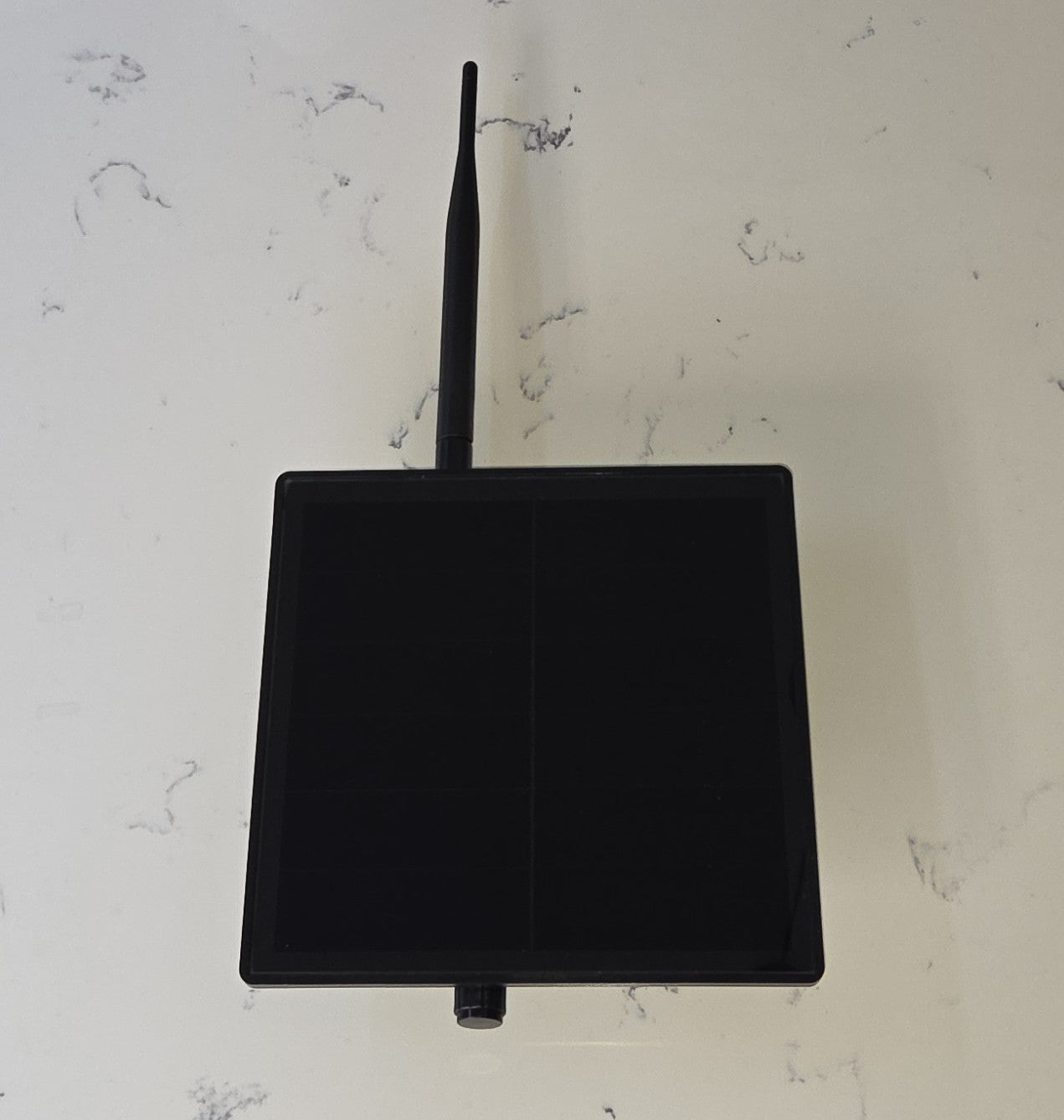

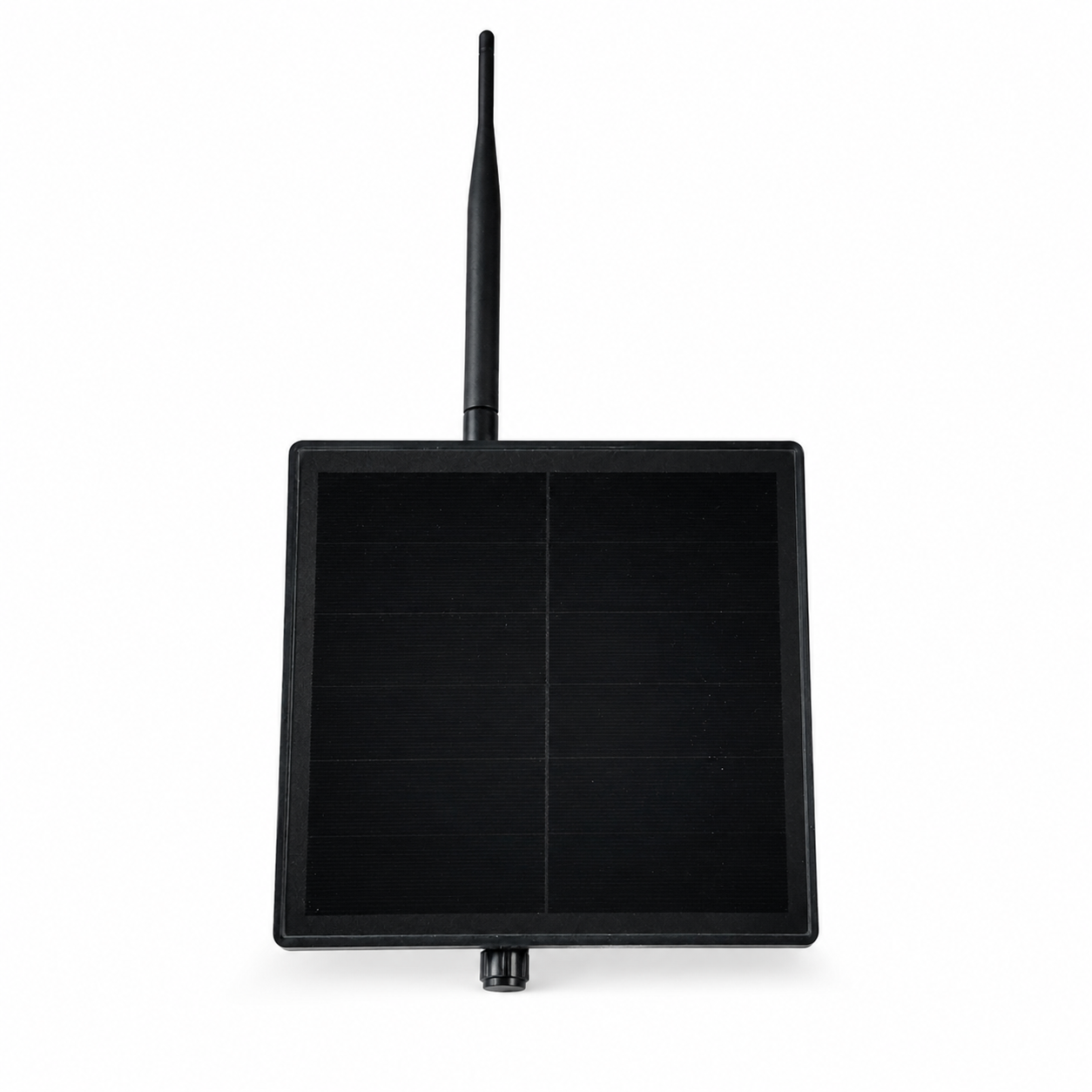

MeshMan™ Power Sipper Solar Node GEN2 for Meshtastic

The successor to the Power Sipper GEN1, now with an IP54 rating and an upgraded 5W panel.

Built for 24/7 operation as a standalone Meshtastic Node, IP54-rated for Outdoor Use. This all-in-one node is ready to go out of the box. Just connect the antenna, mount it & switch it on.

- 5W Glass Solar Panel (No cheap Epoxy)
- 6000mAh Battery Capacity (2 x 3000mAh 18650 batteries included)
- Dedicated Solar & Battery Management Board
- IP54 SMA Antenna Connector
- 2.8dBi 90° Antenna

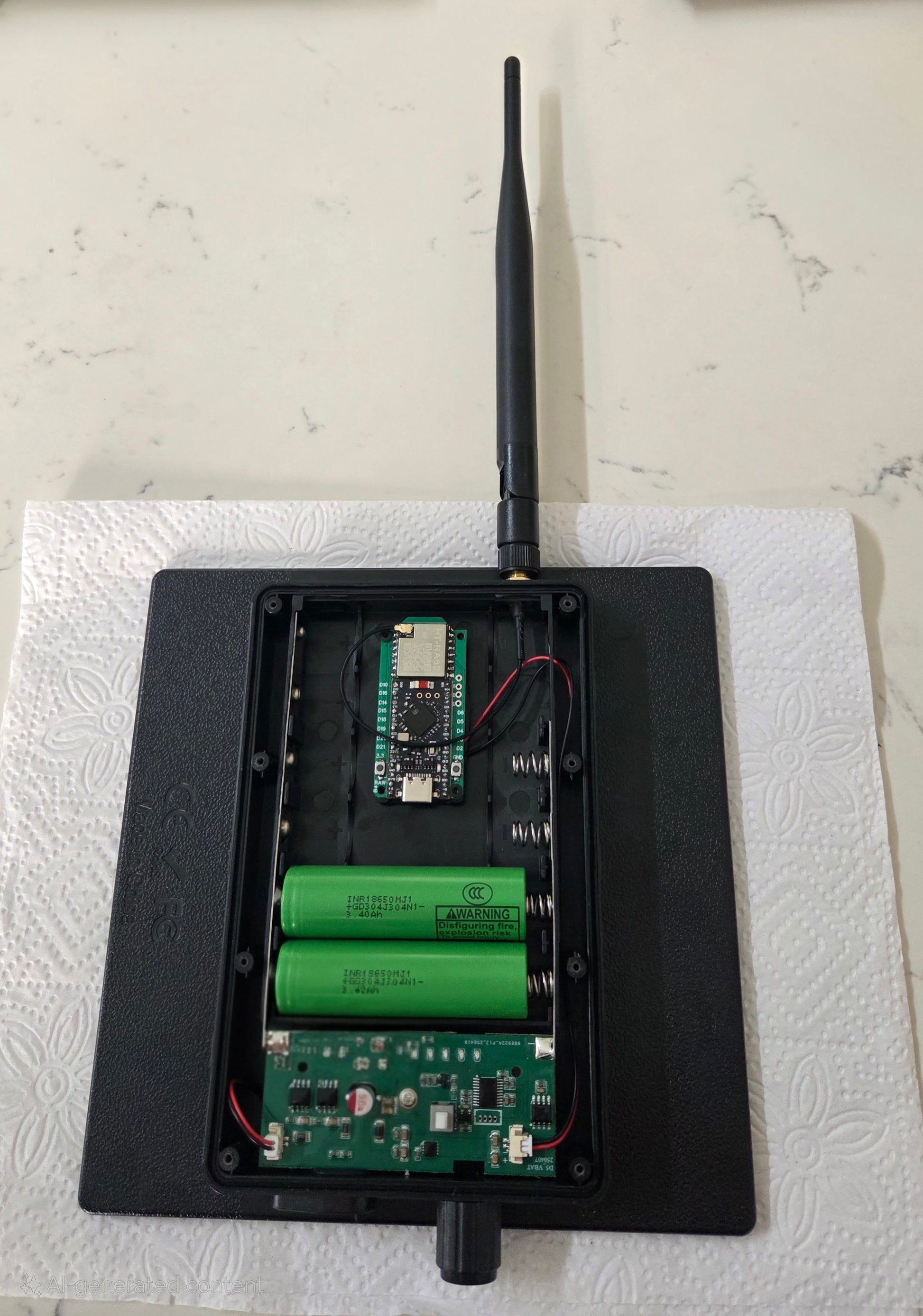

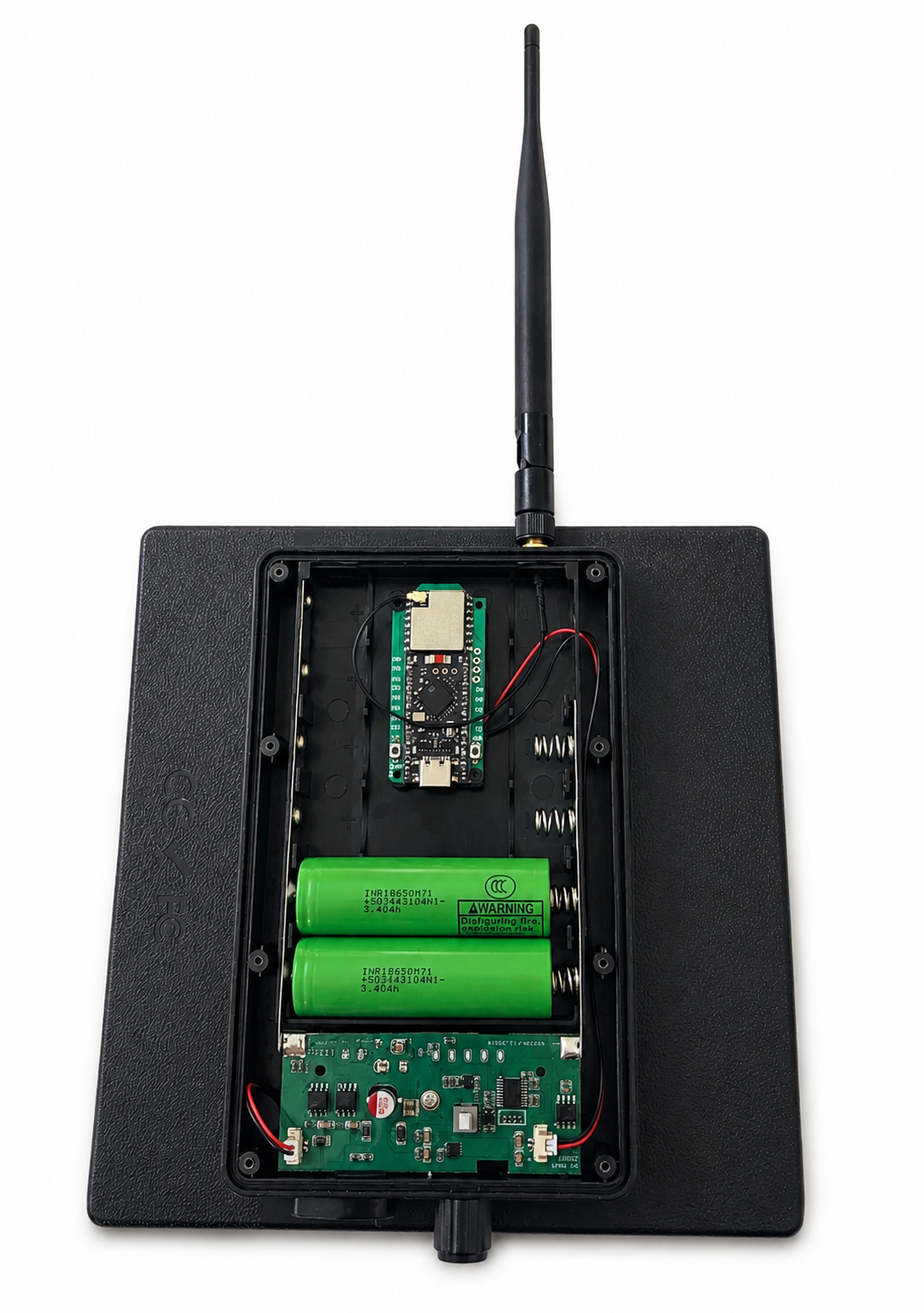

Powered by a FakeTec V3, nRF52 low powered with SX1262 Radio.
The FakeTec V3 variant is assembled in SA, taking advantage of the Heltec HT-RA62 Radio with TCXO for high-precision RF output.

Budget-friendly ESP32 versions coming soon. (not recommended for router use)

-Features an ON/OFF Switch to conserve power in transit/storage
-Indicator Lights for ACTIVE, CHARGING, BATTERY LEVEL
-Supplied with batteries and antenna

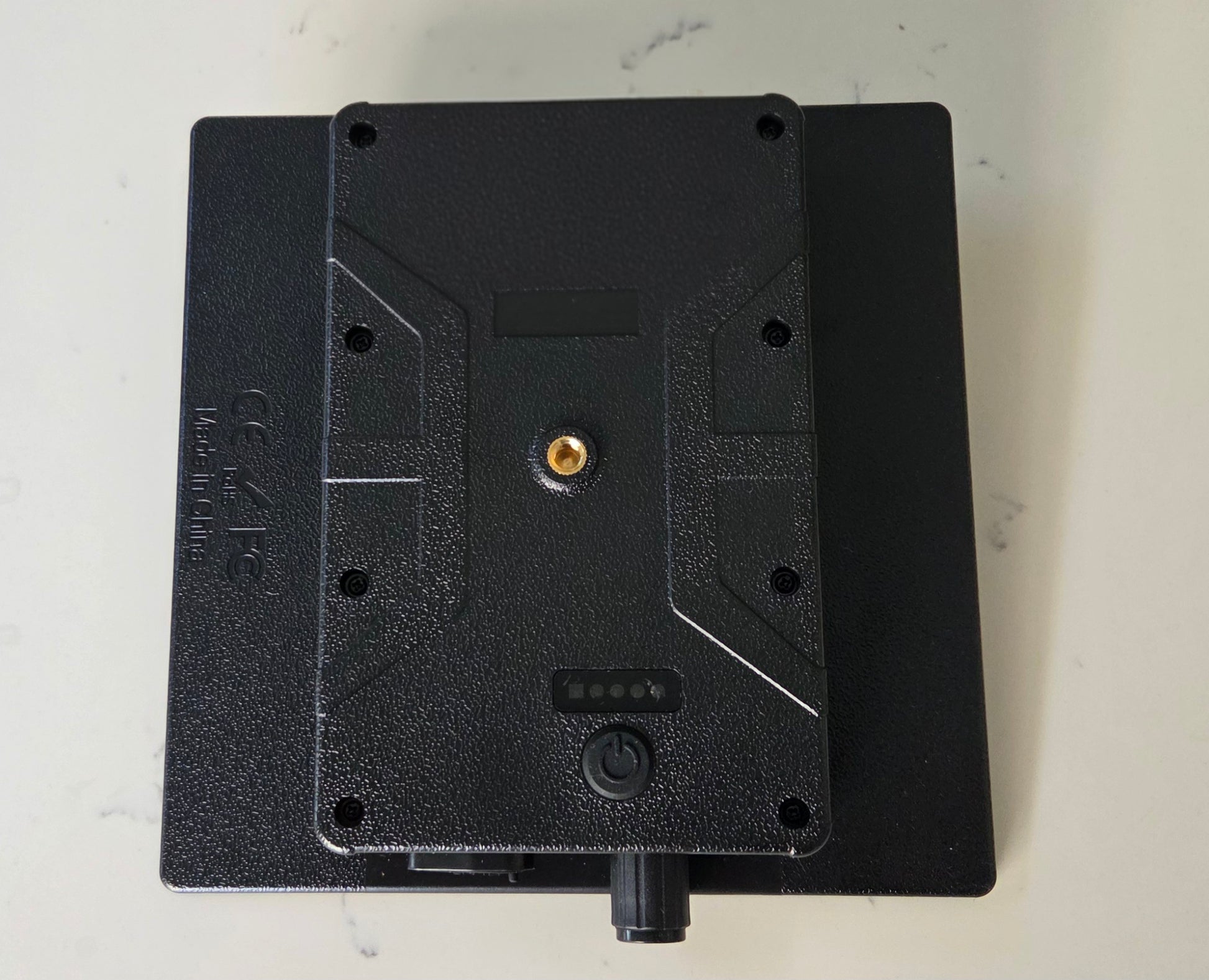

-Threaded rod connection on the rear for unlimited mounting options

This node does not come with mounting hardware; threaded mount is 1/4"-20 UNC, compatible with most CCTV camera mounts and the MeshMan™ Power Sipper Pole Mounting Bracket

Pre-flashed with Meshtastic Firmware, designed for use as a Meshtastic router or mast mount node.

BMS Board will automatically cut power to the node at 3.1V and resume power output when the battery has charged to 4V or above. This ensures stable and reliable operation (The main board is a 3v3 design)

Also available as the chassis only; check the selected option before checking out.

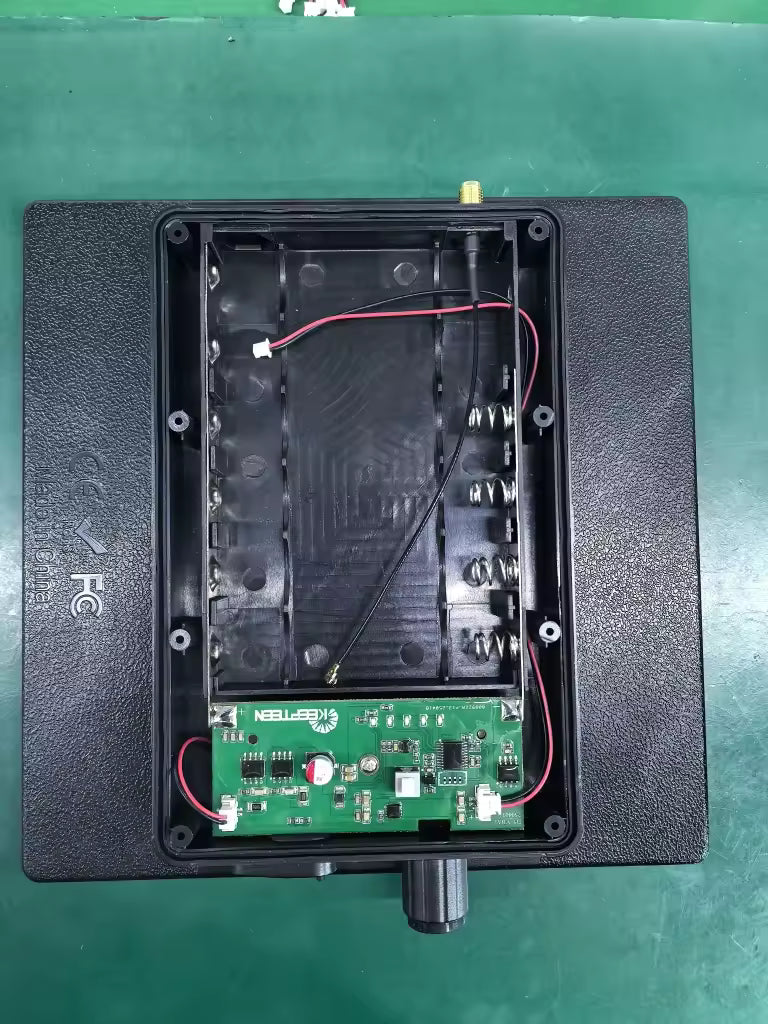

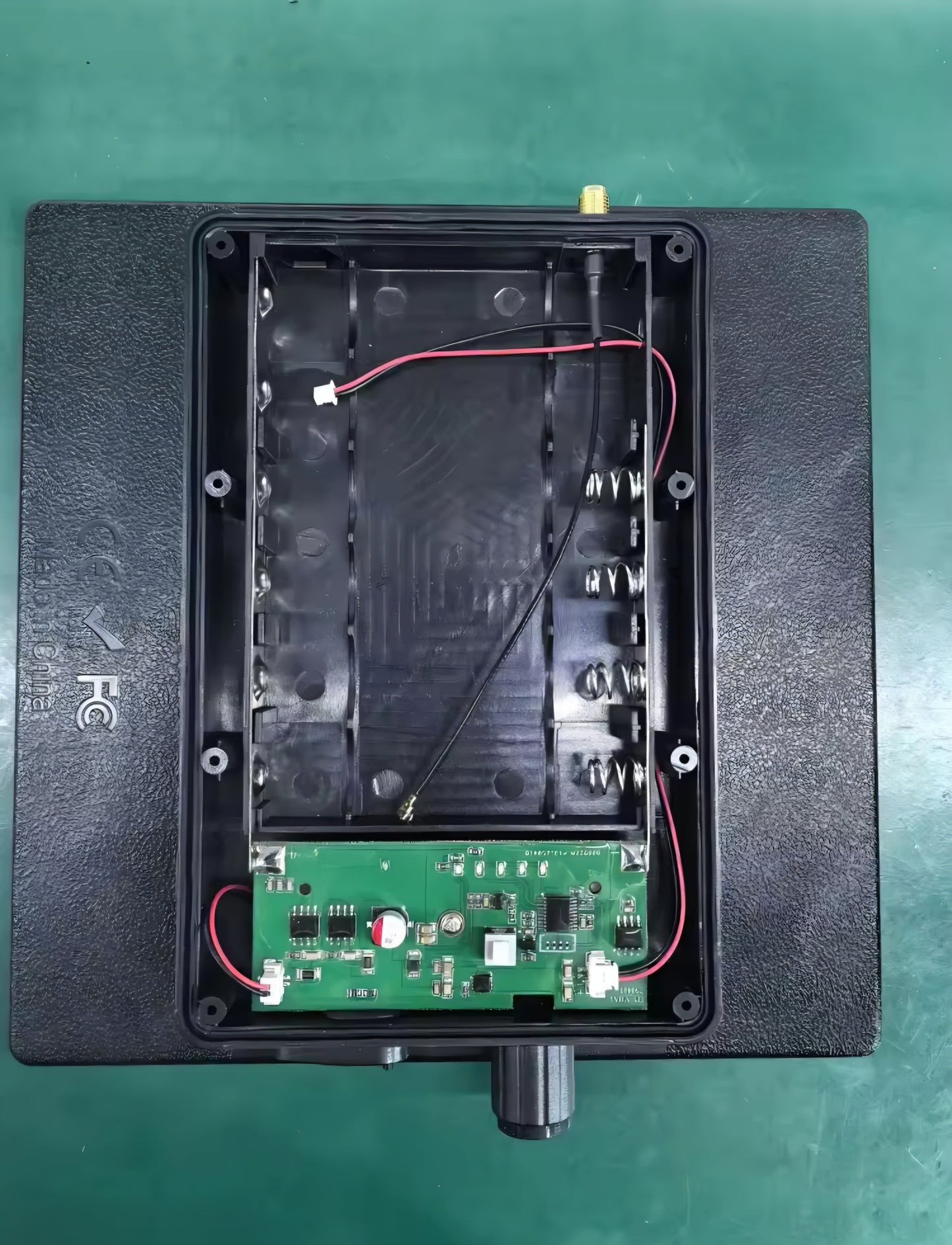

Chassis only option comes with:

- 5W Glass Solar Panel (No cheap Epoxy)
- Dedicated Solar & Battery Management Board
- SMA connector
- 1.25mm JST battery pigtail (use by most boards)

Mast or pole mount 3D Printed Brackets are also available
Don't hesitate to contact us if you have any questions: info@smartcasa.co.za
