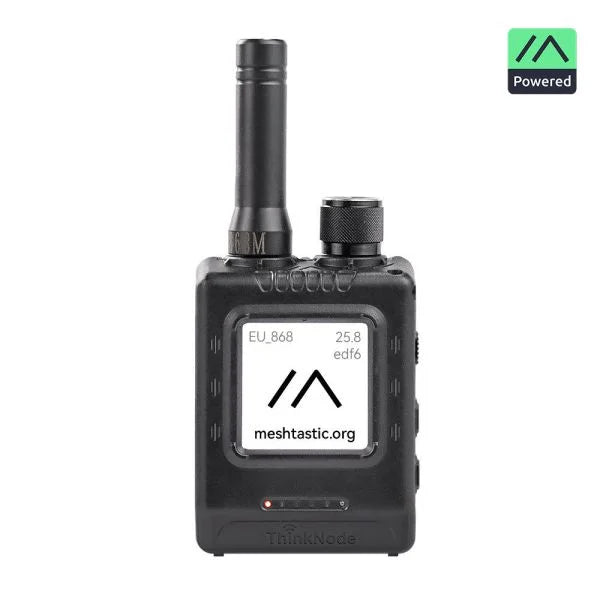

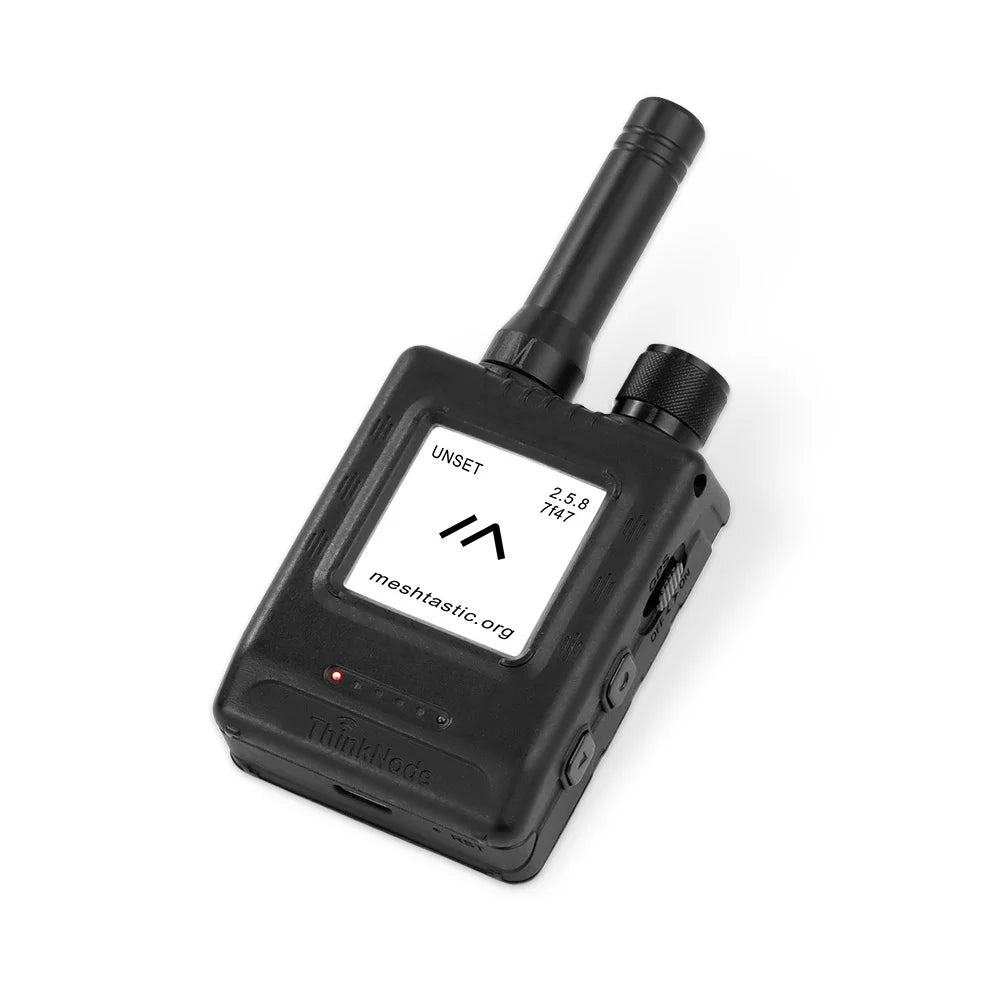

The ThinkNode M5 from Elecrow is a capable, feature rich, all-in-one LoRa node.

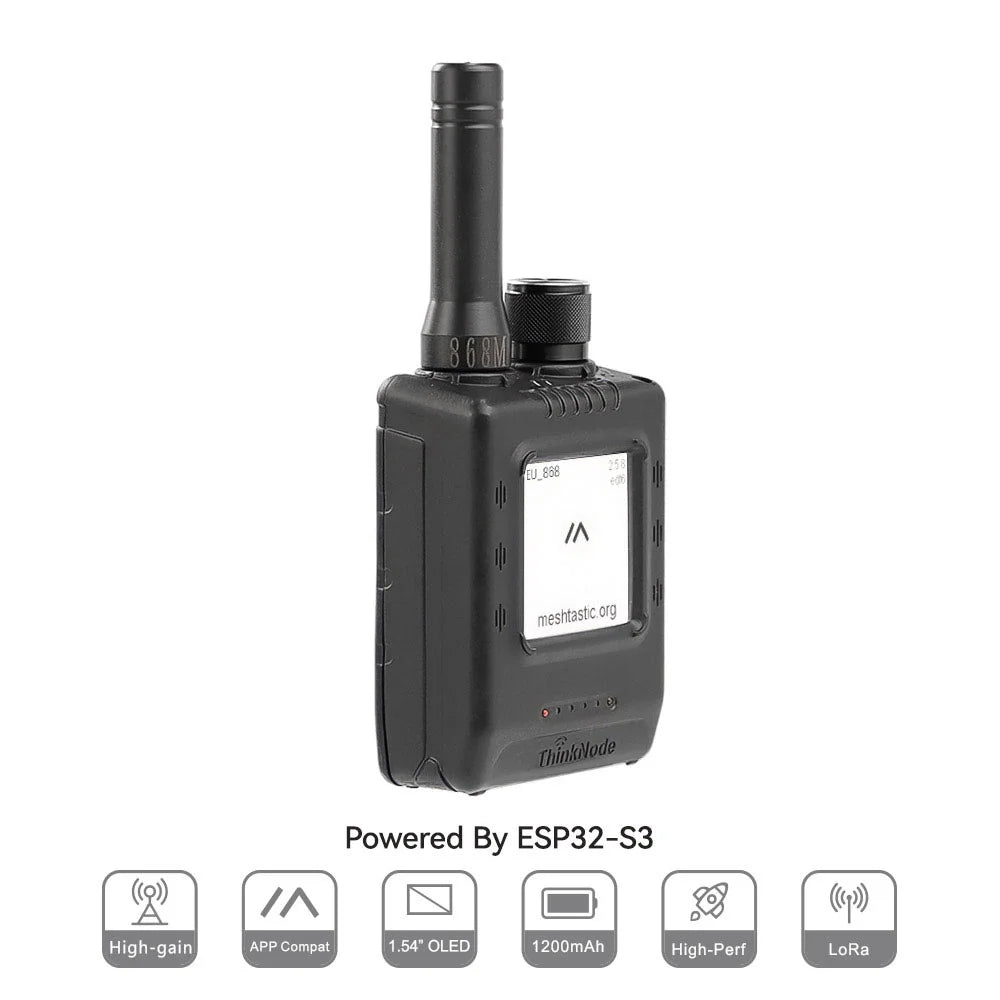

It features the ESP32-S chip and a e-paper display, which result in good battery life while not compromising on performance.
The node also has a buzzer so that you are informed when a new message arrives.

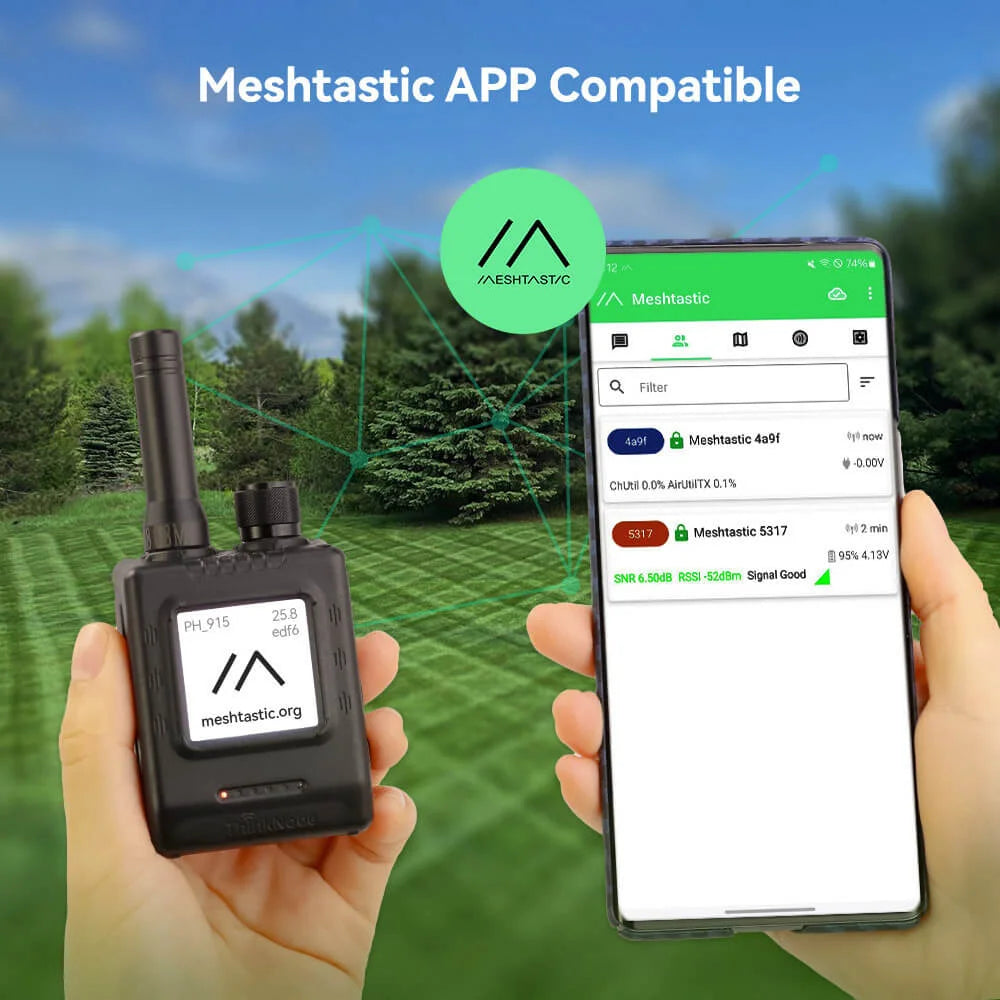

Officially supported by Meshtastic, easy to carry daily, good battery performance.
For exceptional battery life, check out the ThinkNode M1, this M5 unit is better suited as a desktop node (where Wi-Fi capability is required)
It can be used on-the-go but daily charging will be required if you don't use power-saving mode.
Included an internal GPS that can be disabled using a convenient side mounted switch.
Wi-Fi capable for use with the Meshtastic MQTT module.
Smart Casa is a authorized distributor of Elecrow Products
Specification
|
Main Processor（ESP32-S3） |
|
|
CPU/SoC |
High-performance Xtensa 32-bit LX7 dual-core processor, clocked at up to 240MHz |
|
System Memory |
512KB SRAM、8M PSRAM |
|
Storage |
4M Flash, 384KB ROM |
|
Firmware |
Meshtastic firmware is fully compatible |
|
EPD(Electronic Paper Display) |
|
|
Size |
1.54 inch-EPD(monochrome ink screen) |
|
Display Materials |
E-lnk（Electronic Ink） |
|
Resolution |
200*200 |
|
Driver Chip |
SSD1681 (Via SPI or I2C interface) |
|
Global Fresh Time |
2s |
|
Wireless Communication |
|
|
Bluetooth |
Bluetooth Low Energy and Bluetooth 5.0 (phone configuration) |
|
LoRa |
SX1262 LoRa Transceiver, EU 868MHz（External antenna） |
|
Hardware |
|
|
Interface |
Type-C Interface、RP-SMA Interface |
|
Function |
GPS Location(GPS, GLONASS, BeiDou, QZSS)、EPD Display、RTC、USB2.0、 PMU power management (built-in 1200mAh lithium battery), buzzer, etc. |
|
Button |
Knob Switch, Function Button, Page Turn Button, GPS Switch, Reset Button |
|
LED Indicator |
Power supply, GPS/LoRa indication |
|
Other |
|
|
Power Input |
5V/1A, supports USB-C |
|
Power consumption |
The maximum working current is about 340mA (CPU+LoRa transceiver), and the low power consumption is about 34uA |
|
Operating Temperature |
-10~50°C |
|
Storage Temperature |
-20~60 °C |
|
Relative humidity |
10%-95%, @ 40°C (non-condensing) |
|
Size |
82*51.6*26.3mm |
|
Enclosure |
ABS Plastic |
|
Net weight |
81g |
