Elecrow ThinkNode M1
Elecrow ThinkNode M1
Couldn't load pickup availability

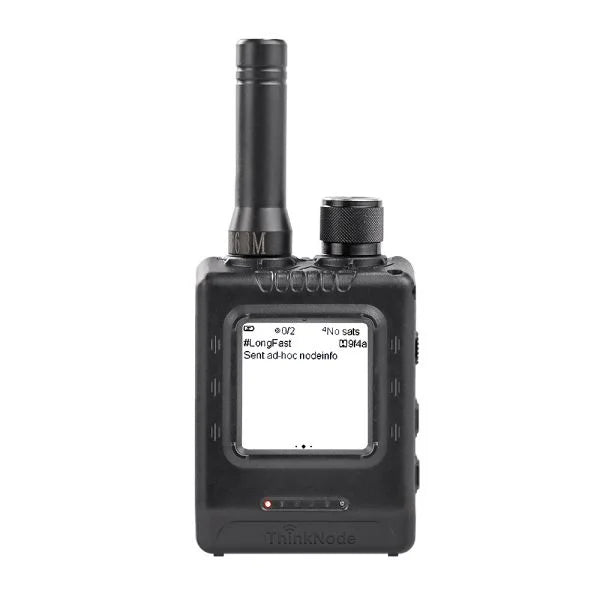

The ThinkNode M1 from Elecrow is a low power all-in-one LoRa node.
It features the nRF52840 chip and a e-paper display, which result in exceptional battery life.
The node also has a buzzer so that you are informed when a new message arrives.
Officially supported by Meshtastic, easy to carry daily, a great all round node.
Included an internal GPS that can be disabled using a convenient side mounted switch.
Smart Casa is a authorized distributor of Elecrow Products
Specification
|
Main Processor（Nordic nRF52840） |
|
|
CPU/SoC |
32-bit Arm® Cortex™-M4 CPU at 64 MHz with FPU (Floating Point Unit) |
|
System Memory |
256 KB RAM |
|
Storage |
3 MB Flash memory (external 2M Flash chip) |
|
Firmware |
Meshtastic firmware is fully compatible, and the signal is transmitted in LoRa mode |
|
EPD Display(Electronic Paper Display) |
|
|
Size |
1.54 inch-EPD(monochrome ink screen) |
|
Display Materials |
E-Paper（Electronic Ink） |
|
Resolution |
200*200 |
|
Global Fresh Time |
2s |
|
Wireless Communication |
|
|
Bluetooth |
Bluetooth Low Energy and Bluetooth 5(phone configuration) |
|
LoRa |
SX1262 LoRa Transceiver, EU 868MHz(External antenna) LoRa Transmit Power: +22dbm |
|
Hardware |
|
|
Interface |
Type-C Interface、RP-SMA Antenna Interface |
|
Function |
GPS Location(GPS, GLONASS, BeiDou, QZSS)、EPD Display、RTC、USB2.0、 PMU power management (built-in 1200mAh lithium battery), buzzer |
|
Button |
Knob Switch, Function Button, Page Turn Button, GPS Switch, Reset Button |
|
LED Indicator |
Power supply, GPS/LoRa indication |
|
Other |
|
|
Power Input |
5V/1A, supports USB-C |
|
Power consumption |
The maximum working current is about 85mA (CPU+LoRa transceiver), and the low power consumption is about 5.6μA |
|
Operating Temperature |
-10~50°C |
|
Storage Temperature |
-20~60 °C |
|
Relative humidity |
10%-95%, @ 40°C (non-condensing) |
|
Size |
82*51.6*26.3mm |
|
Shell |
ABS Plastic |
|
Net weight |
81g (With case) |
