XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic
XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic
Couldn't load pickup availability

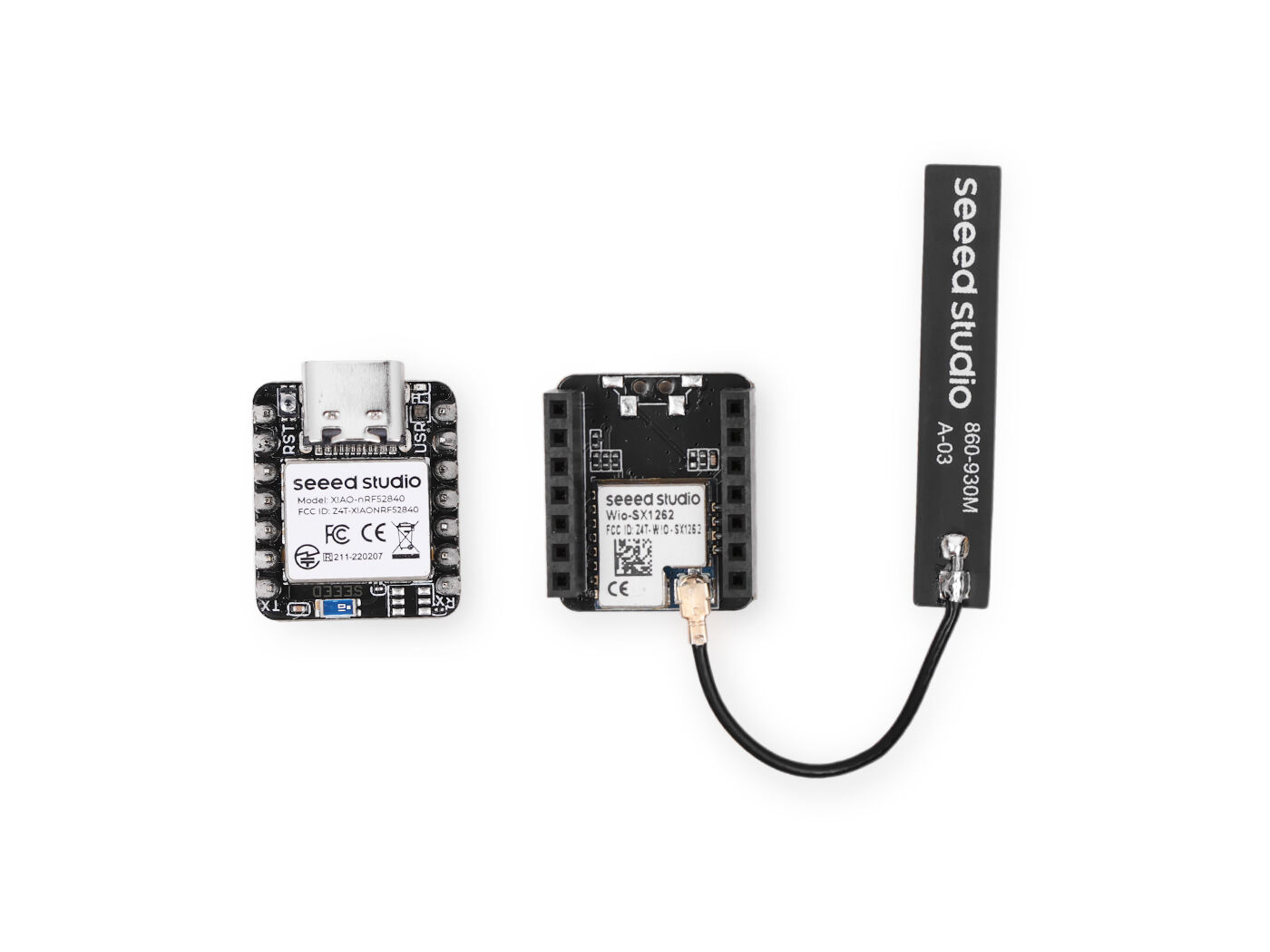

This thumb-sized LoRa dev kit, featuring the XIAO nRF52840 and Wio-SX1262 LoRa module, is an ideal starter kit for Meshtastic and LoRa/LoRaWAN projects that require low power consumption and an unbelievably small form factor.
It supports BLE and LoRa, it includes a built-in power management chip, and can be extended via IIC, UART, and other GPIO interfaces, with compatibility for Arduino development.
|
Nordic nRF52840 ARM® Cortex®-M4 with FPU runs up to 64 MHz |
|
|
Based on Semtech SX1262, supports 862-930MHz |
|
|
Wireless |
Bluetooth 5.0/NFC |
|
Interface |
XIAO nRF52840:1x UART, 1x IIC, 1x SPI(connect to SX1262),1x NFC, 1x SWD, 11x GPIO(PWM), 6x ADC |
|
Wio-SX1262:1xSPI(connect to XIAO nRF52840) |
|
|
Power |
Input voltage (Type-C): 5V Input voltage (BAT): 4.2V |
|
Charging battery current: 50mA/100mA |
|
|
Standby power consumption: <5uA |
|
|
Working Temperature |
-40°C ~ 65°C |
|

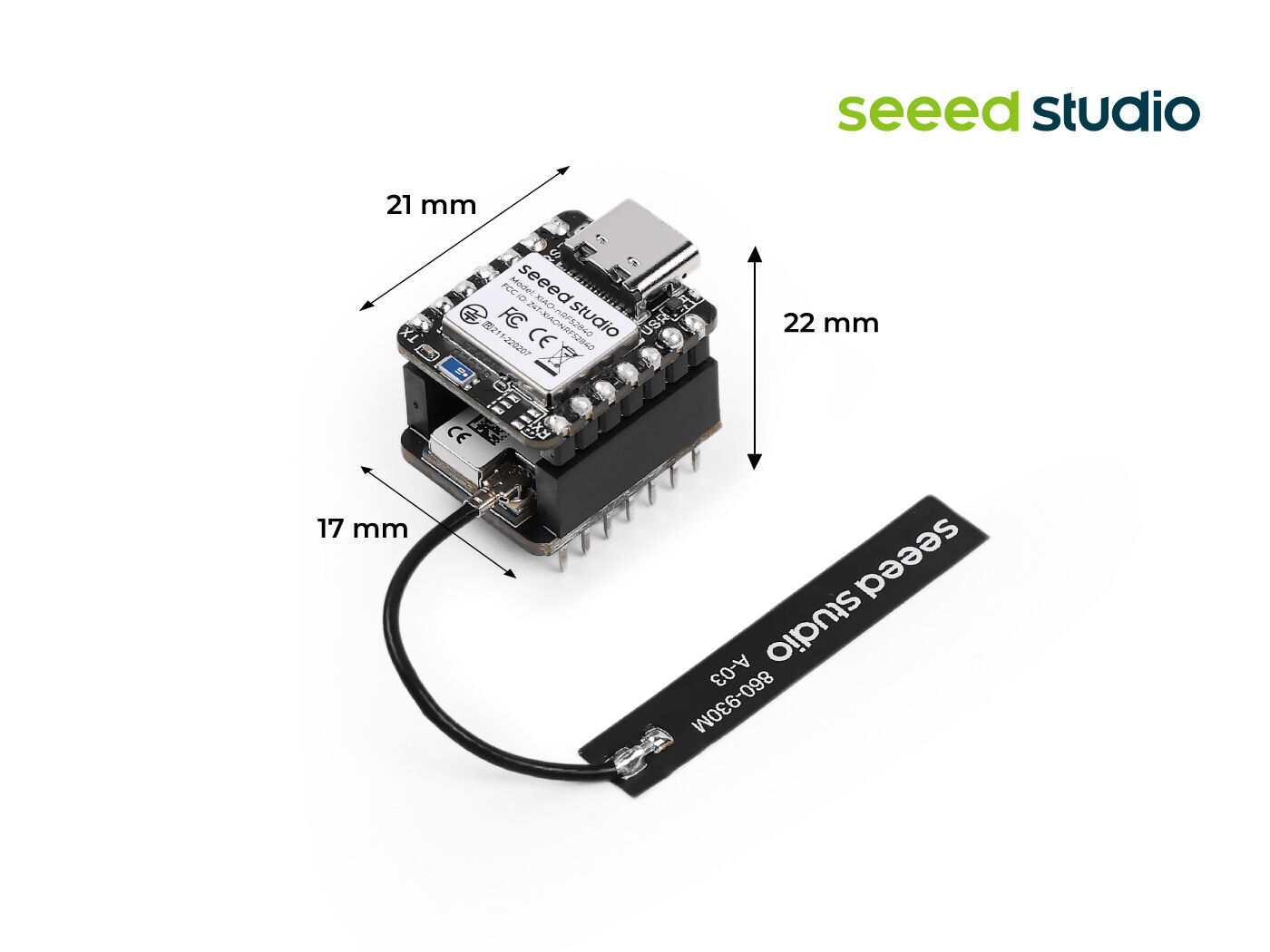

Dimensions |
21 x 17.8mm |
