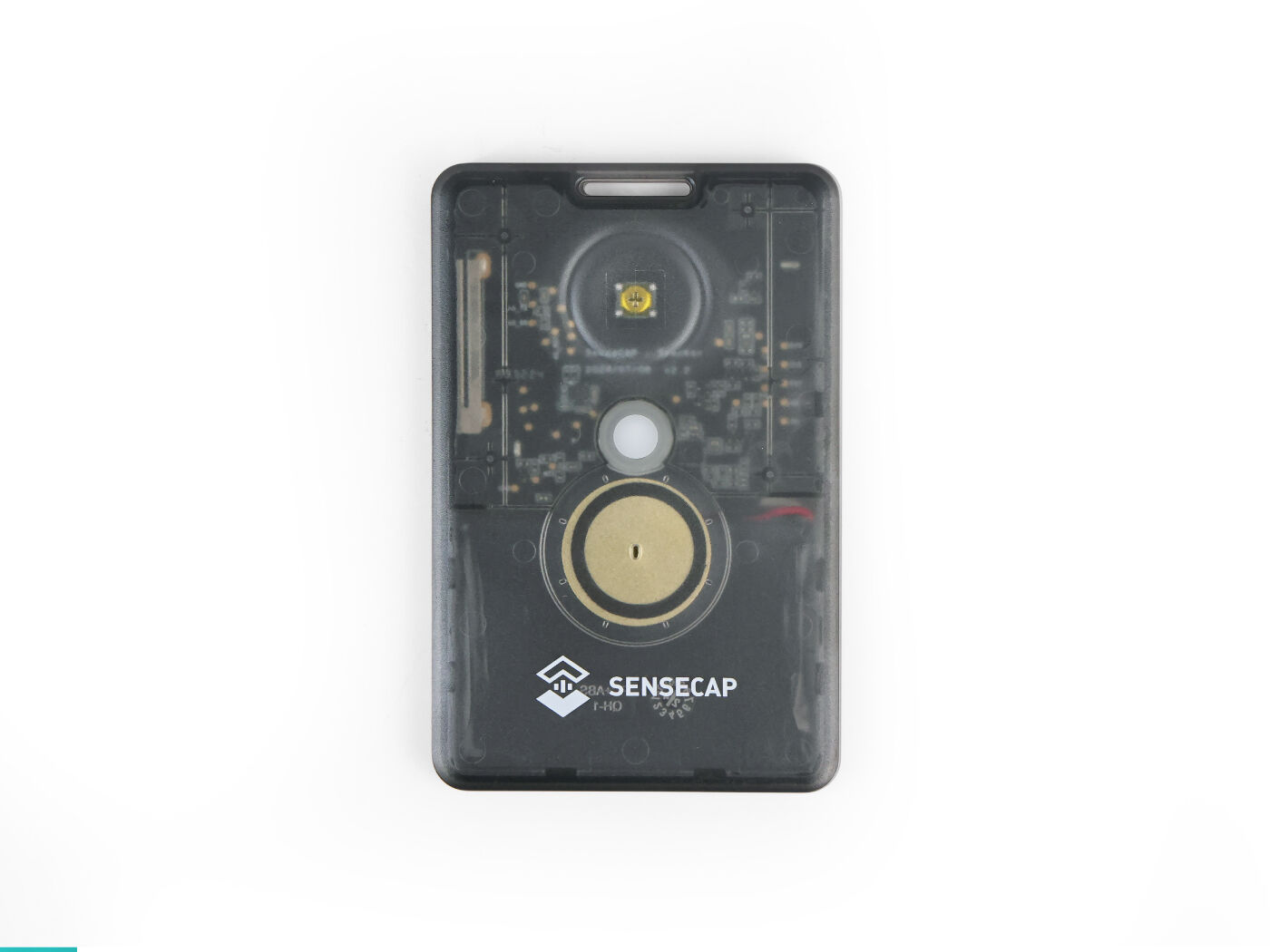

Seeed SenseCAP T1000E Card Tracker for Meshtastic
Seeed SenseCAP T1000E Card Tracker for Meshtastic
Couldn't load pickup availability

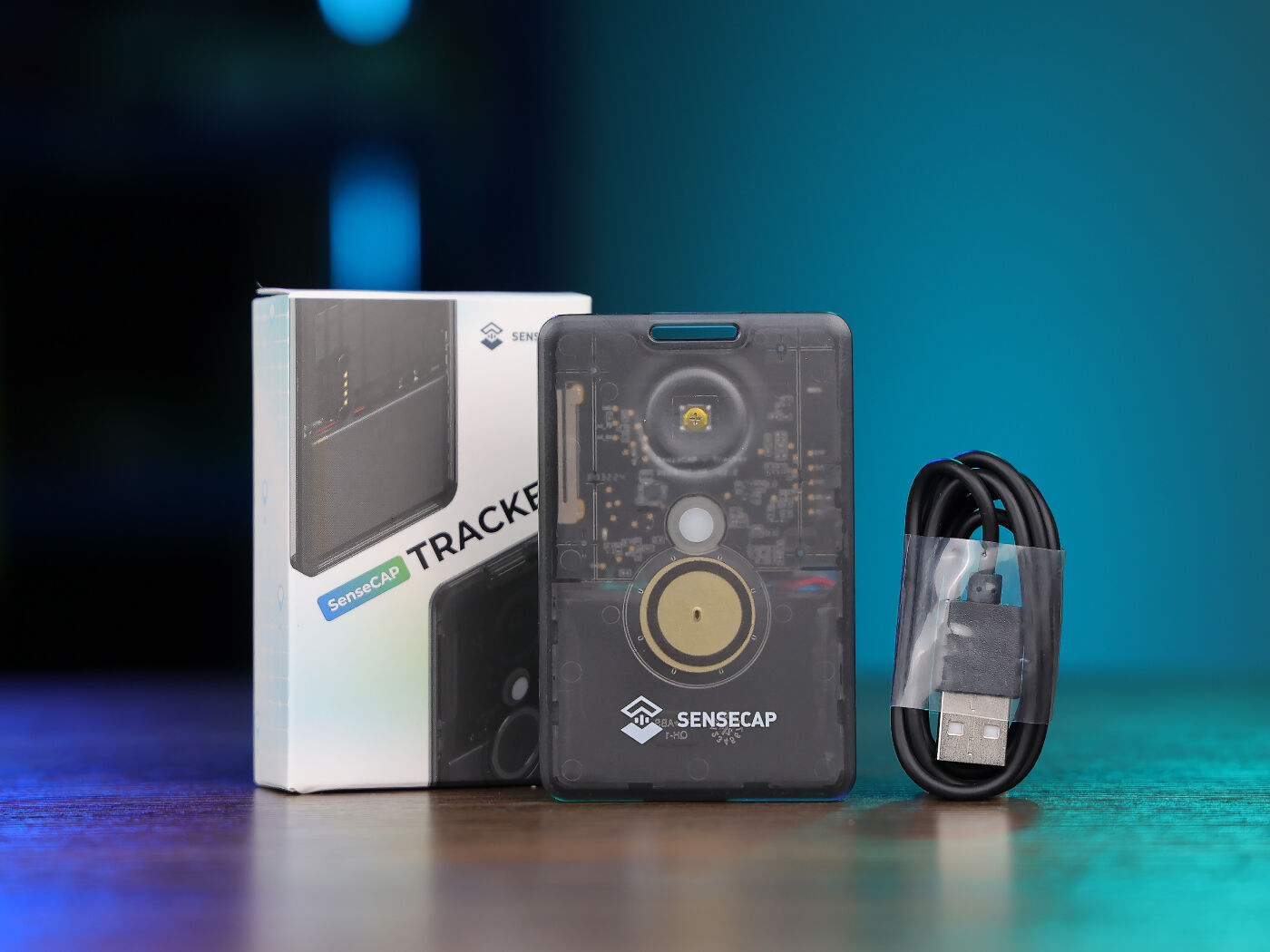

Comes with a magnetic charging cable
GPS and Buzzer Built in, requires a smartphone or PC to use/configure.
- Multi-protocol support: Featuring nRF52840 and LR1110, it supports LoRa (global ISM bands in the 863-928 MHz range). After purchasing the T1000-E, you can freely choose your region in the Meshtastic app. It also supports Bluetooth 5.0, Thread, and Zigbee, ensuring compatibility with a wide range of devices and networks.
- Powerful Positioning Capabilities: Integrated with the Mediatek‘s AG3335 GPS chip, it provides high-precision positioning services.
- Expandable Interfaces: Designed with four pogo pins, it supports USB interface for DFU (Device Firmware Upgrade), serial logging, and API interface, simplifying device management and debugging.
- Open Source Support: Compatible with the Meshtastic open-source mesh networking protocol, suitable for long-range and low-power communication needs.
- General
Network protocol |
LoRa(Supports 863-928 MHz range), Bluetooth v5.1 |
Temperature |
Range: -20 to 60℃; Accuracy: ± 1℃ (min ±0.5℃, max ±1℃) Resolution: 0.1℃ |
Light |
0 to 100% (0% is dark, 100% is brightest) |
3-Axis Accelerometer |
3-Axis Accelerometer to detect movement (Not currently used in the Meshtastic firmware) |
LED and Buzzer |
1*LED and 1* buzzer to indicate status |
Button |
1* Button to operate |
Antenna |
Internal (GNSS/LoRa/Wi-Fi/BLE) |
Communication Distance |
2 to 5km (depending on antenna, installation, and environments) |
IP Rating |
IP65 |

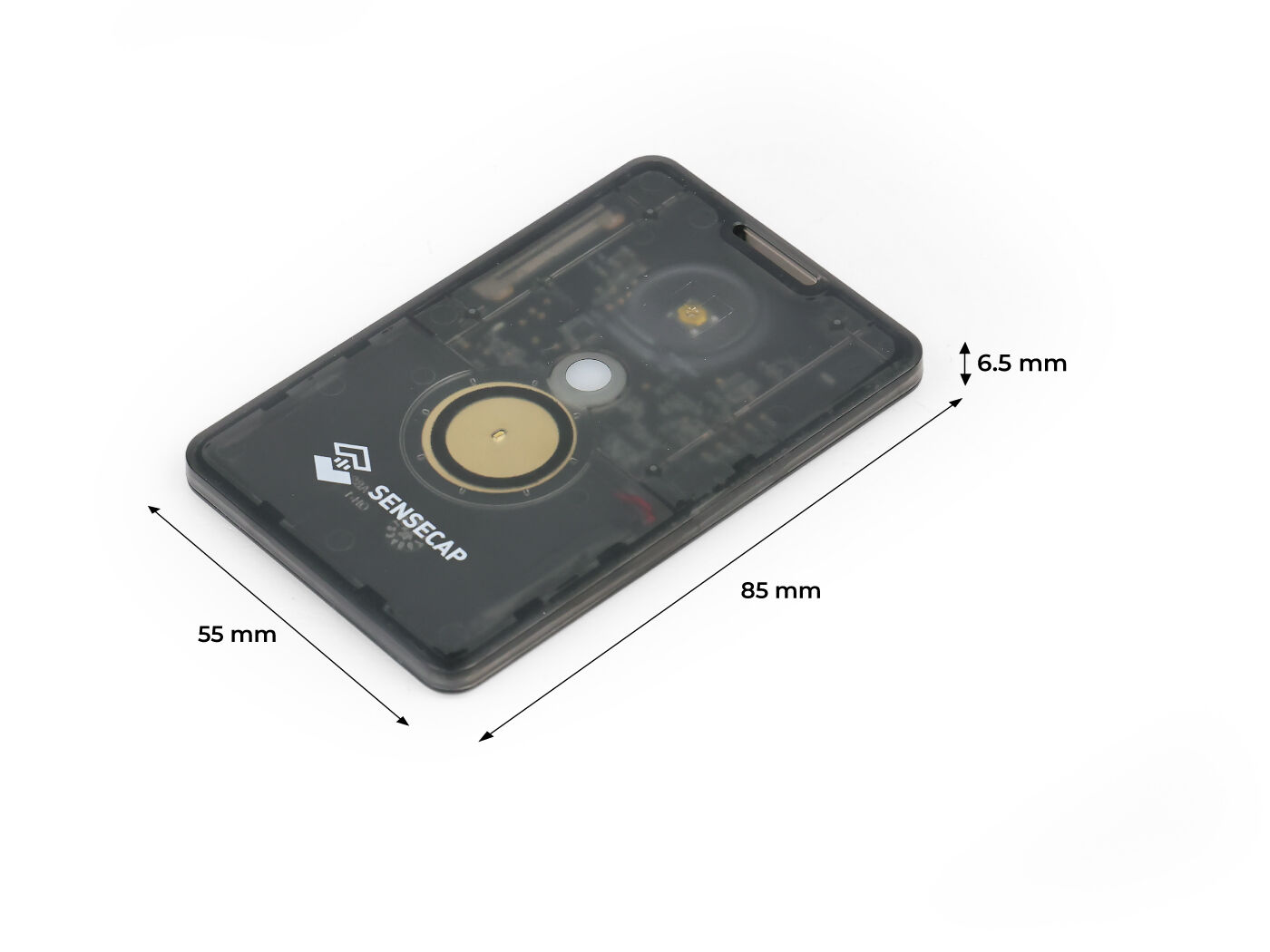

Dimensions |
85 * 55 * 6.5 mm |
Device Weight |
32g |
Operating Temperature |
-20℃ to +60℃ |
Operating Humidity |
5% - 95% (No condensation) |
Certification |
CE /FCC |
- Battery
Battey Capacity |
Rechargeable lithium battery, 700mAh |
Battery Life Monitoring |
Periodic uplink battery level |
Charge Cable (Adapter not included) |
USB magnetic charging cable, 1 meter |
Power Input Voltage |
4.7 to 5.5V DC |
Charging Temperature Limit |
0 to +45℃ |
