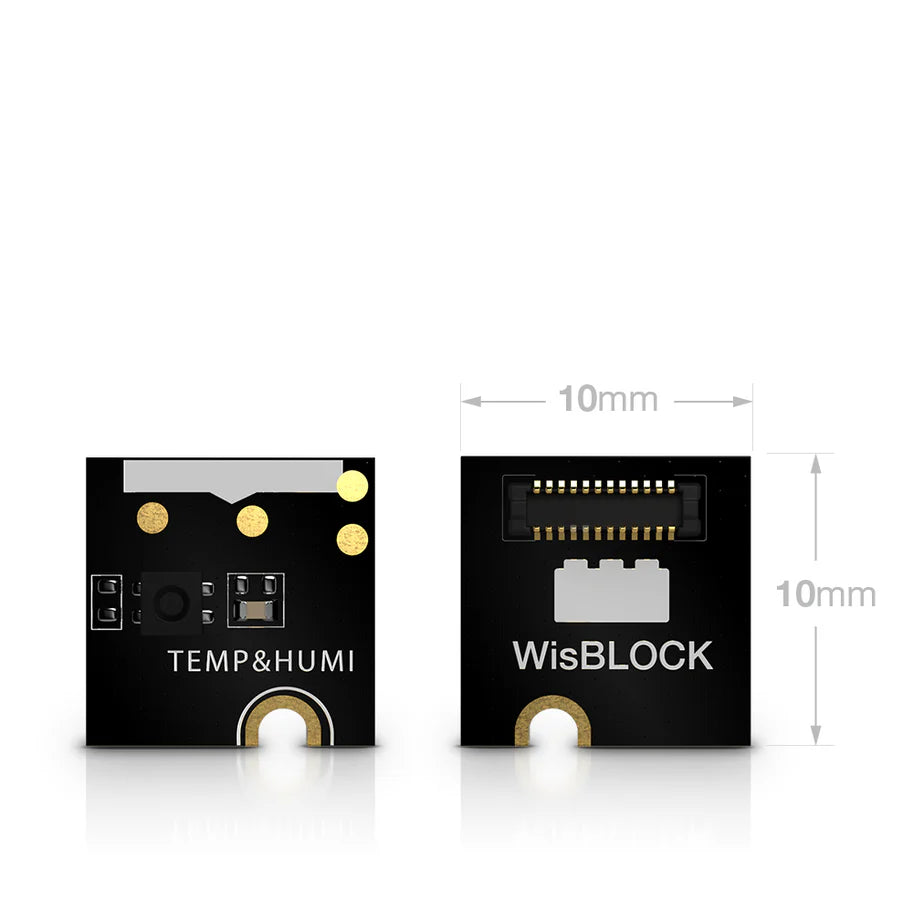

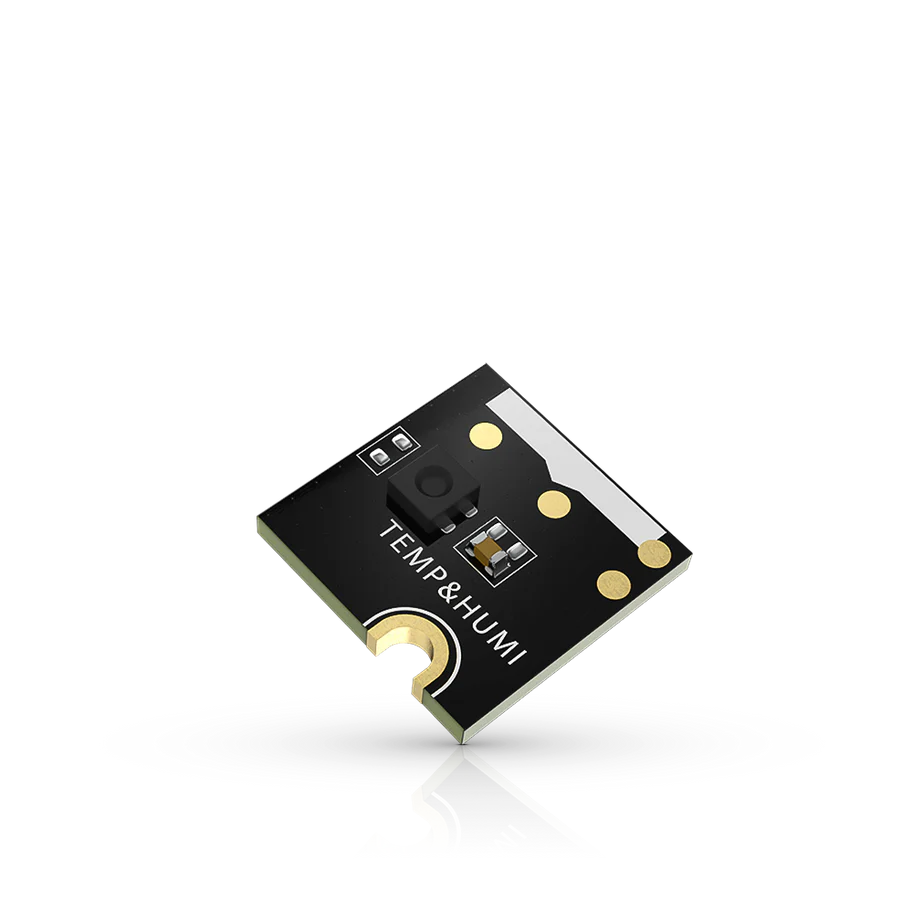

RAK1901 Temperature and Humidity Sensor for Wisblock

Product Description

RAK1901 is a WisBlock Sensor based on Sensirion SHTC3 which extends the WisBlock system with temperature and humidity sensing capabilities. A ready to use SW library and tutorial makes it easy to build up an environmental temperature and humidity data acquisition system.

RAK1901's temperature range from -40 to +125 °C enables its use in nearly any environment. The temperature accuracy of ±2.0 °C is su­fficient for most applications RAK1901 combined with the RAK4631 WisBlock Core, is ready to go system to collect environment data. The acquired data can be send using LoRaWan® communication, LoRa® point to point connections and BLE.

RAK1901 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows for powering down the module completely to reduce the system's power consumption even further.

RAK1901 temperature and humidity sensor can be joined with other WisBlock sensors modules to create a weather station.

Key Features

• Using the Sensirion SHTC3 temperature & humidity sensor
• Low power consumption
• Small form factor
• ±0.2 °C temperature accuracy
• -40 to +125 °C temperature range
• ±2.0 % RH humidity accuracy
• 0 to 100% humidity range

Package Inclusions

• 1pc RAK1901
