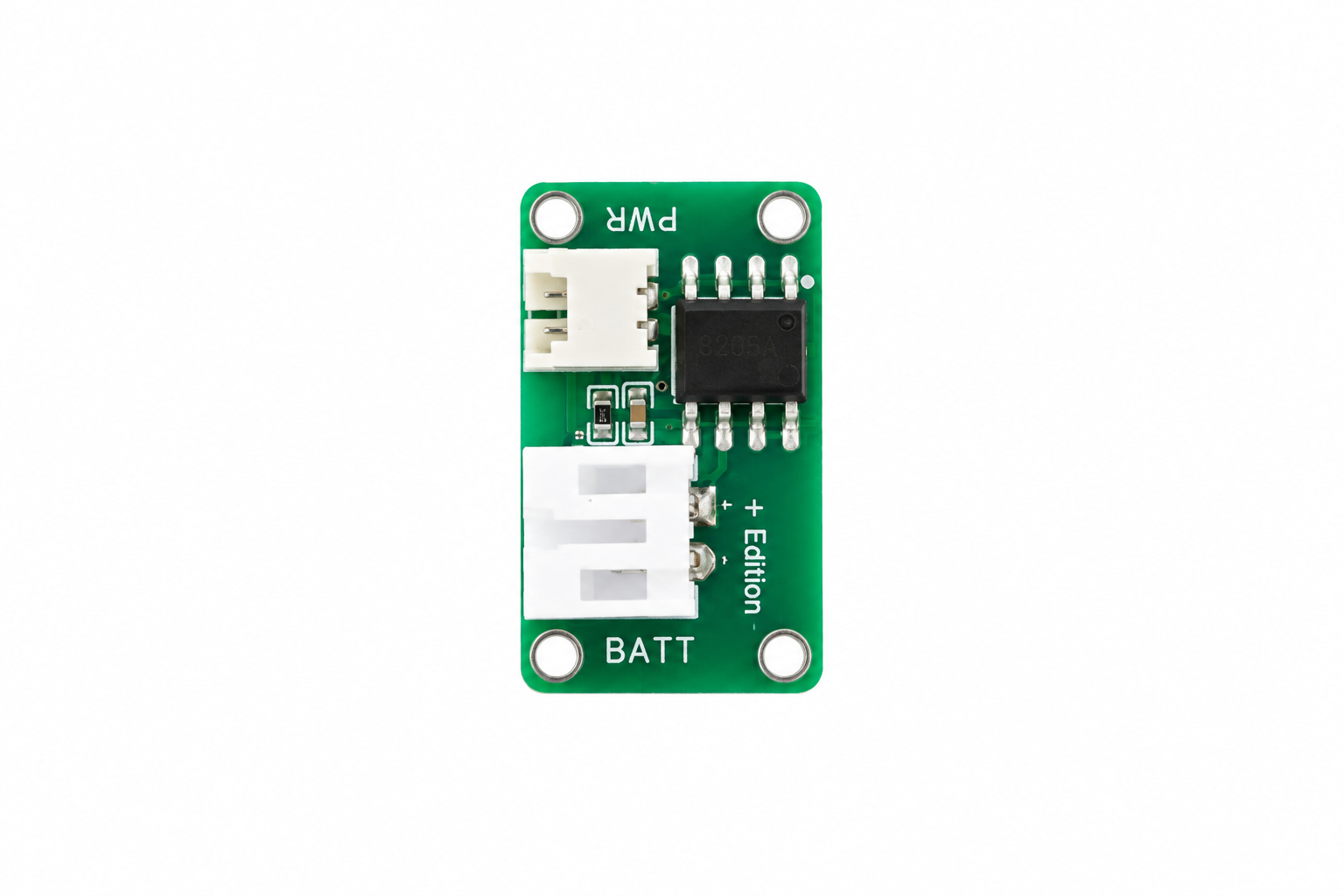

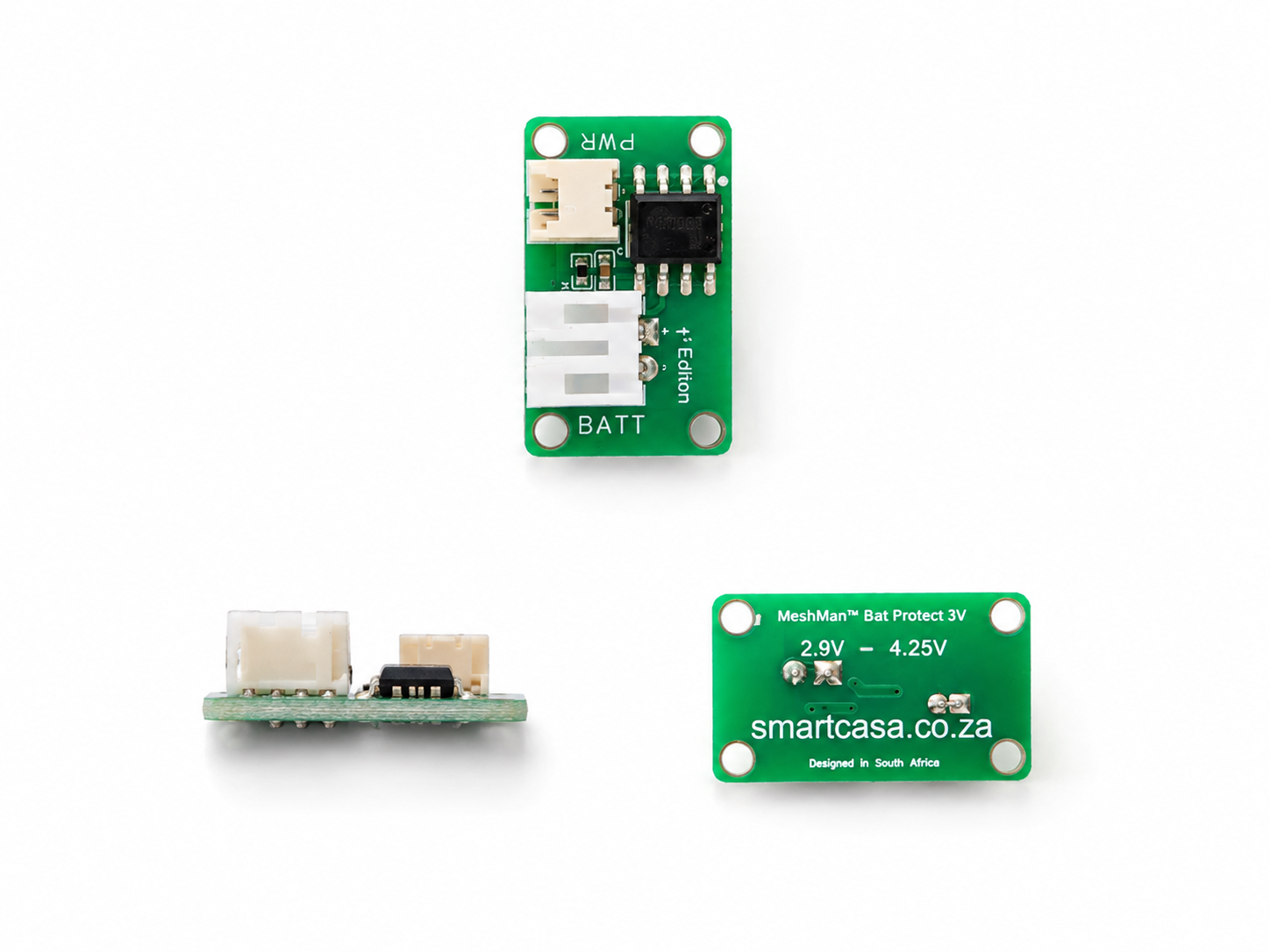

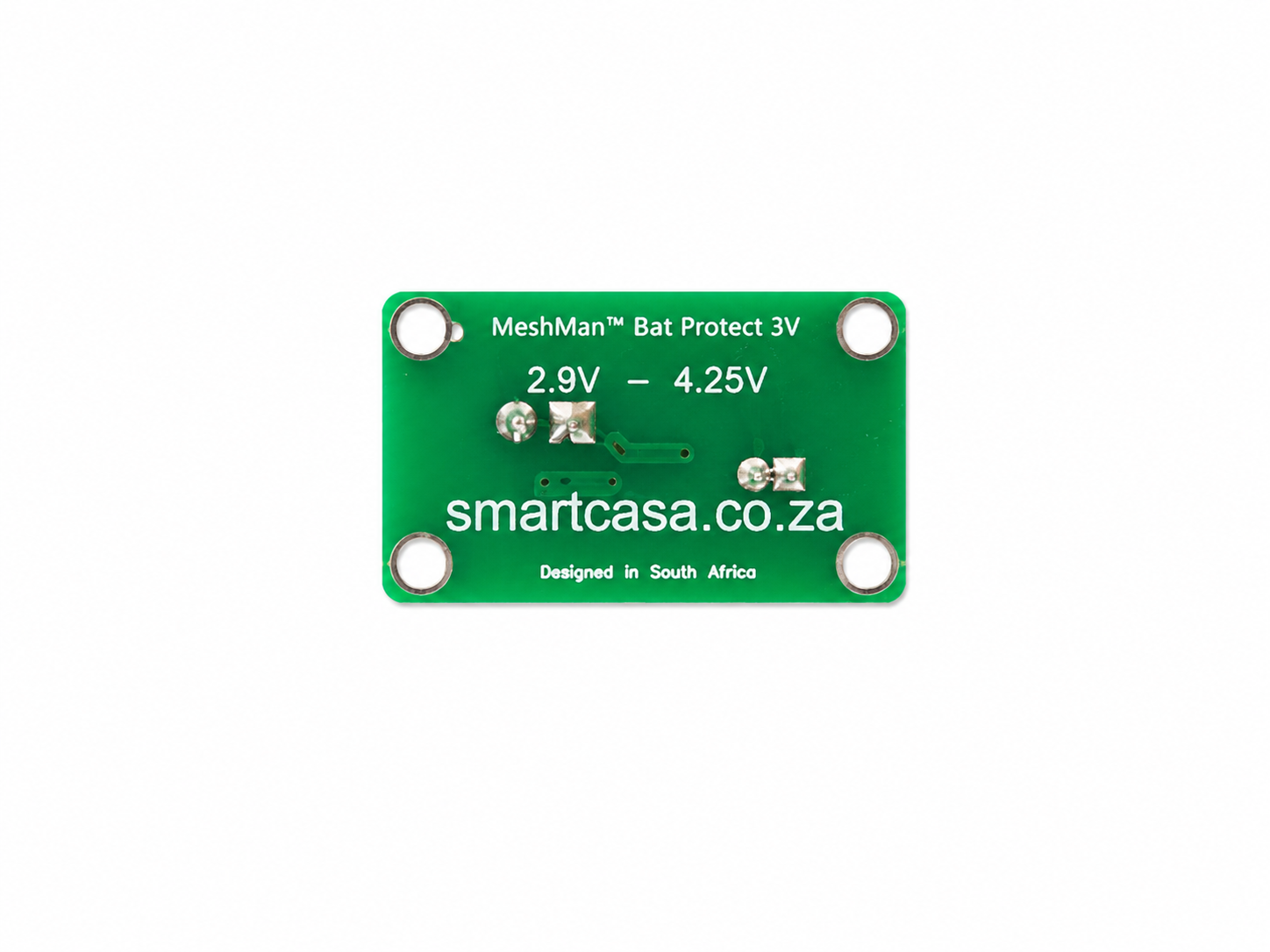

MeshMan™ Battery Protect V3 Board

Created by Smart Casa due to demand for a battery protection board that is suitable for Meshtastic and MeshCore nodes that have no low voltage protection.

This board accepts a LiPo or Li-Ion battery via the JST-2.0 connector.
It outputs battery voltage via the JST-GH 1.25mm connector.
The connectors are also removable (through-hole solder) for a even smaller footprint.

This board protects your battery from over-discharge while simultaniously solving the "brown-out" problem that most nodes experience. (When battery voltage drops below 3V)

The board will disconnect the output when the battery drops below 2.9V and turn it back on when battery goes above 3V. It will accept charge from the output side and should be installed between a battery and all loads.

Batteries of 800mAh or higher recommended.

Please Note: This is not a charger, your board still handles charging, this board only provides high and low voltage protection.

Specifications
