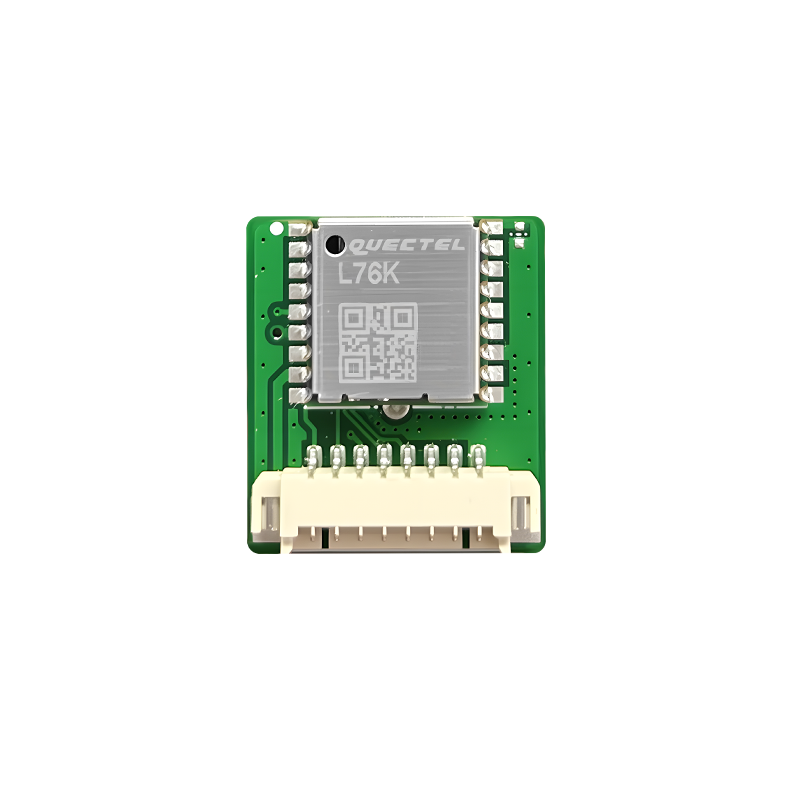

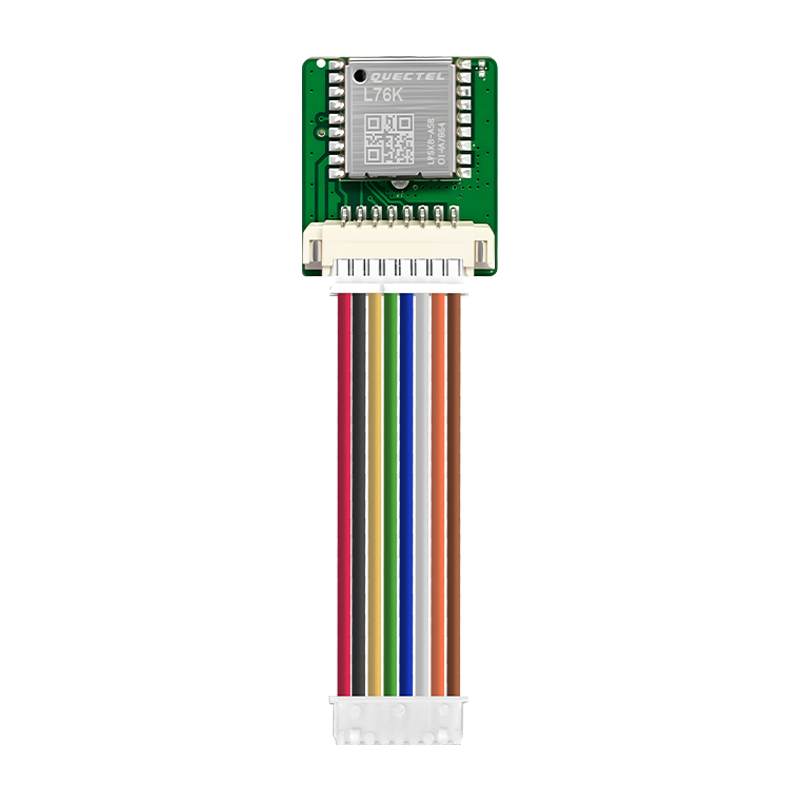

L76K GPS with Ribbon Cable

Name: L76K GPS with Ribbon Cable
Brand: Heltec
Price: 299.00 ZAR
Availability: InStock

R 299.00 ZAR

Sale Sold out

The L76K GPS with ribbon cable is primarly used for Heltec Boards with GNSS connector.

Plug and Play GPS for the Heltec V4 or your other LoRa projects that require GNSS connectivity.

Specifications

Parameters	Description
Power supply	2.8V~4.3V
Power Consumption	18mA@3.3V
Position Accuracy	2.5m CEP
Timing Accuracy 1PPS	10ns
Data Update Rate	Up to 10Hz
Operating temperature	-40℃ to 85℃
Storage temperature	-45℃ to 125℃
Dimension	10.19.72.5mm
Interface	1.25mm 8-Pin SMD, With 8P adapter cable
