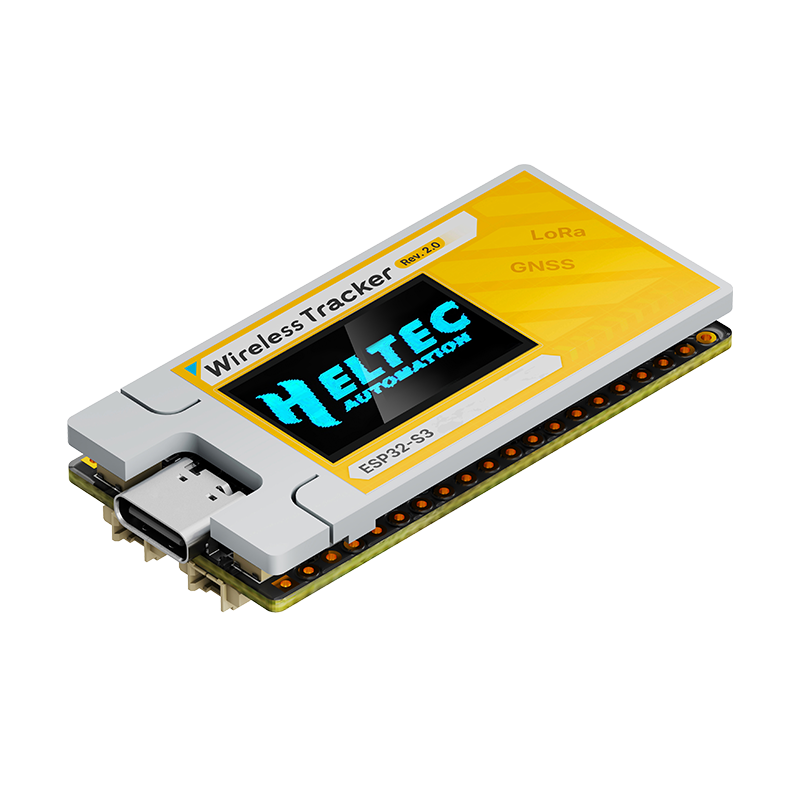

Heltec Wireless Tracker V2

Heltec Wireless Tracker V2

R 749.00 ZAR
R 749.00 ZAR
Sale Sold out

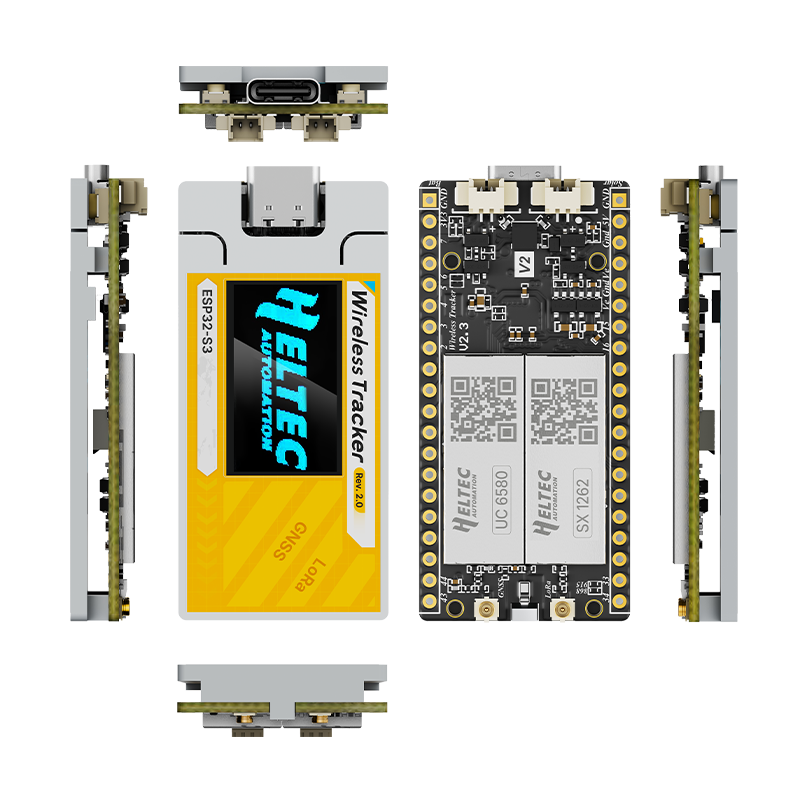

The Wireless Tracker V2 is built around the ESP32-S3FN8 and integrates the SX1262 LoRa chip along with the UC6580 GNSS chip.


This new generation Wireless Tracker V2 incorporates a power amplifier, achieving a maximum transmission power of up to 28±1dBm. The LNA can be bypassed without affecting reception performance.
The Wireless Tracker V2 features LDS antennas for both GNSS and 2.4G, significantly reducing the device’s size.

Main Features

  • Supports Wi-Fi/Bluetooth, LoRa, and GNSS communication.
  • Integrates a power amplifier with a maximum output power of 28±1dBm, and the LNA can be bypassed.
  • Supports multi-system joint positioning including GPS, GLONASS, BDS (BeiDou), Galileo, NAVIC, and QZSS.
  • Integrated lithium battery management system (charge/discharge management, overcharge protection, battery power detection, automatic switching between USB and battery power).
  • USB-C interface with comprehensive voltage regulation, ESD protection, short circuit protection, and RF shielding.
  • Compatible with Meshtastic and MeshCore.

Specifications


Parameters Description
MCU ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor)
LoRa Chip SX1262
GNSS Chip UC6580
Frequency 863~928MHz
Max. TX Power 28±1dBm
Max. Receiving Sensitivity -134dBm
Wi-Fi 802.11 b/g/n, up to 150Mbps
Bluetooth LE Bluetooth 5
Hardware Resource 7*ADC1 + 2*ADC2; 7*Touch;
3*UART;
2*I2C; 2*SPI; etc.
Interface Type-C USB;
2*1.25 lithium battery interface;
2*1.25 solar panel interface;
LoRa ANT(IPEX1.0);
GNSS ANT(IPEX1.0);
2*18*2.54 Header Pin
Battery 3.7V(3V-4.2V) lithium battery power supply and charging
Operating Temperature -20 ~ 70 ℃
Dimensions 52.00*25.40*10.26 mm


Packing list

The default packing list without selecting any accessories is as follows:

Item Quantity
Wireless Tracker x1
Spring LoRa Antenna x1
SH1.25×2 Battery Connector x1
Pin Header x2
