Heltec

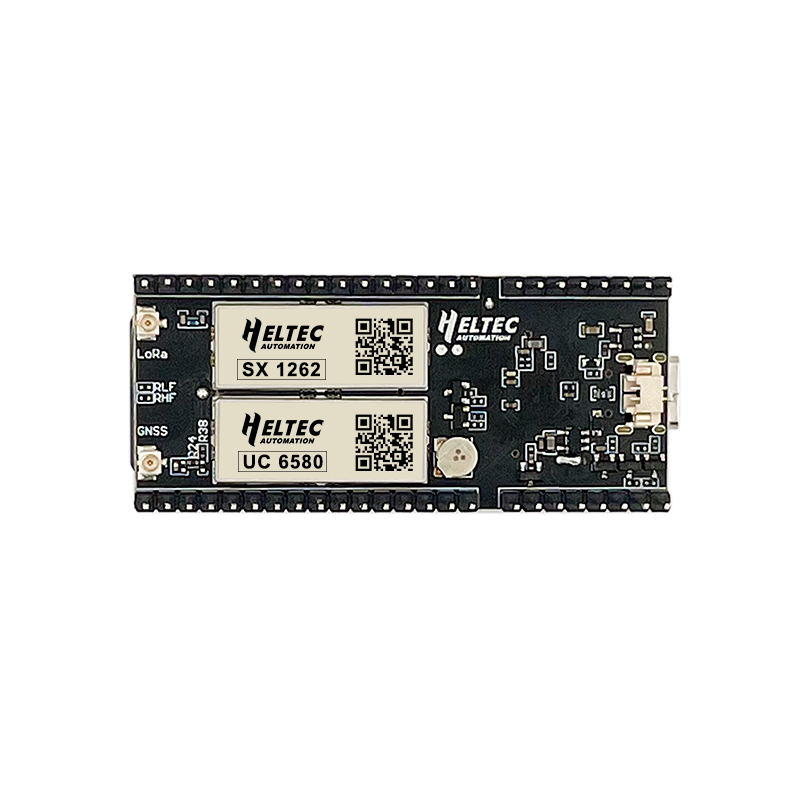

Heltec Wireless Tracker (GPS)
Heltec Wireless Tracker (GPS)
Regular price
R 699.00 ZAR
Regular price
Sale price
R 699.00 ZAR
Unit price
/
per
Couldn't load pickup availability
The perfect LoRa node for tracking on the Mesh
- ESP32S3 Processor
- sx1262 LoRa radio
- Wi-Fi/Bluetooth
- GPS
Includes:
| Item | Quantity |
|---|---|
| Wireless Tracker | x1 |
| LoRa Antenna | x1 |
| SH1.25×2 Battery Connector | x1 |
| Pin Header | x2 |
Specifications
| Parameters | Description |
|---|---|
| Master Chip | ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor) |
| LoRa Chipset | SX1262 |
| GNSS Chipset | UC6580 |
| Frequency | 863~928MHz |
| Max. TX Power | 21±1dBm |
| Max. Receiving Sensitivity | -134dBm |
| Wi-Fi | 802.11 b/g/n, up to 150Mbps |
| Bluetooth LE | Bluetooth 5, Bluetooth mesh |
| Hardware Resource | 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc. |
| Interface | Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*18*2.54 Header Pin |
| Battery | 3.7V lithium battery power supply and charging |
| Operating Temperature | -20 ~ 70 ℃ |
| Dimensions | 65.48 * 28.06* 13.52mm |
Note: This node has no display
External GPS antenna capable, but not supplied with the node, the node will use the internal antenna.
