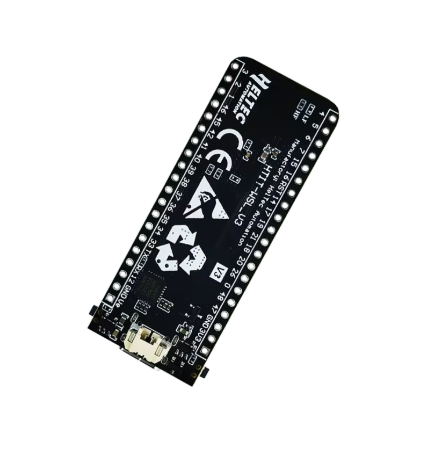

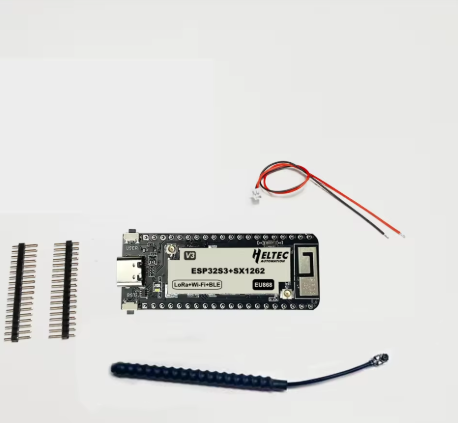

Heltec Wireless Stick Lite V3
Heltec Wireless Stick Lite V3
Regular price
R 499.00 ZAR
Regular price
R 580.00 ZAR
Sale price
R 499.00 ZAR
Unit price
/
per
Couldn't load pickup availability
Supports Meshtastic
Perfect for solar nodes (when using power-saving mode), roof top nodes, or mobile nodes that don't require a display.

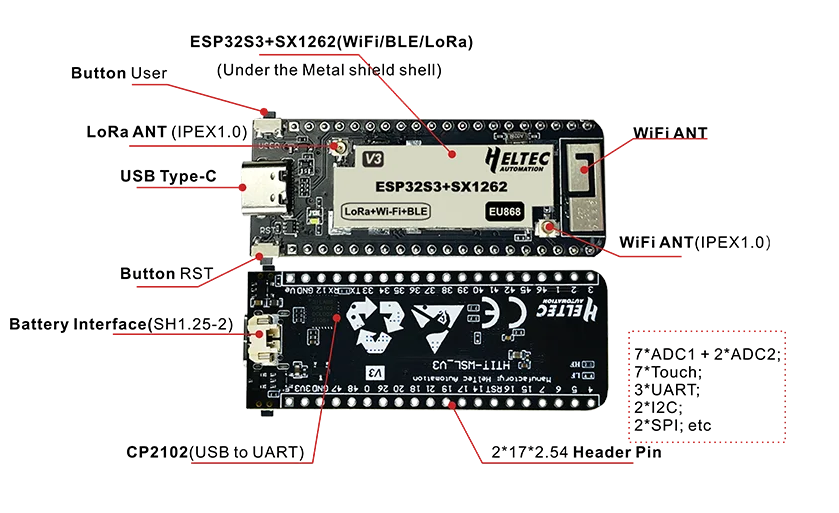

Main Features
- Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual core processor, five-stage pipeline, rack Structure, main frequency up to 240MHz).
- SX1262 LoRa node chip.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
- Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa
- Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing.
- Support the Arduino development environment;
- With good RF circuit design and basic low-power design (sleep current ≤800uA), it is convenient for IoT applications
Quick Spec
- Heltec Board Model & Version: HTIT-WSL (V3)
- Processor: ESP32-S3FN8
- Lora Chipset: SX1262
- Frequency band: 868MHz
- Deep Sleep Current: <10uA
- USB Port: USB-C
- Onboard Battery interface: Yes
- Integrated Lithium Battery Management: Charge and Discharge Management
