Heltec Vision Master E213
Heltec Vision Master E213
Regular price
R 719.00 ZAR
Regular price
Sale price
R 719.00 ZAR
Unit price
/
per
Couldn't load pickup availability

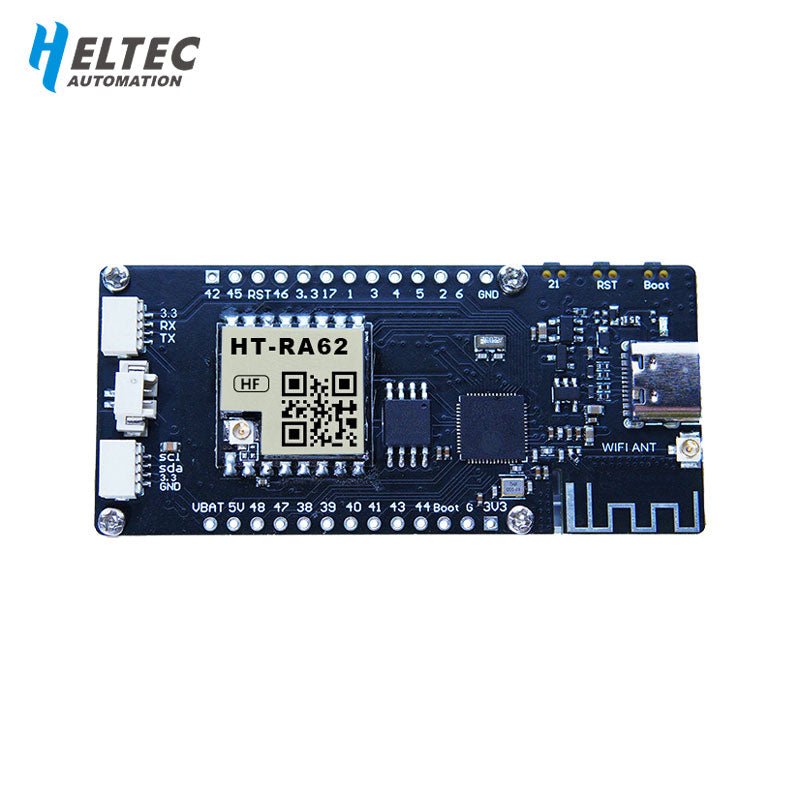

This ESP32S3 + sx1262 LoRa node features an E-Ink display, which is larger, and consumes less power than traditional OLED displays.
This kit comes with everything you need to get started and is fully supported by Mehstastic, just 3D Print or build your own case.
Includes:
| Item | Quantity |
|---|---|
| HT-VME213 | x1 |
| LoRa Antenna | x1 |
| SH1.25-2P Battery Connector | x1 |
| 2.54*13 Header Pin | x2 |
Specifications
| Parameters | Description |
|---|---|
| Master Chip | ESP32-S3R8 |
| LoRa Node Chip | SX1262 |
| Frequency | 863~928MHz |
| Max. TX Power | 21±1dBm |
| Max. Receiving sensitivity | -136dBm@SF12 BW=125KHz |
| Wi-Fi | 802.11 b/g/n, up to 150Mbps |
| Bluetooth | Bluetooth 5 (LE) |
| Hardware Resource | 6*ADC_1, 1*ADC_2, 6*Touch, 8M*PSRAM, 3*UART; 2*I2C; 2*SPI. Etc |
| Memory | 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 16MB SiP Flash |

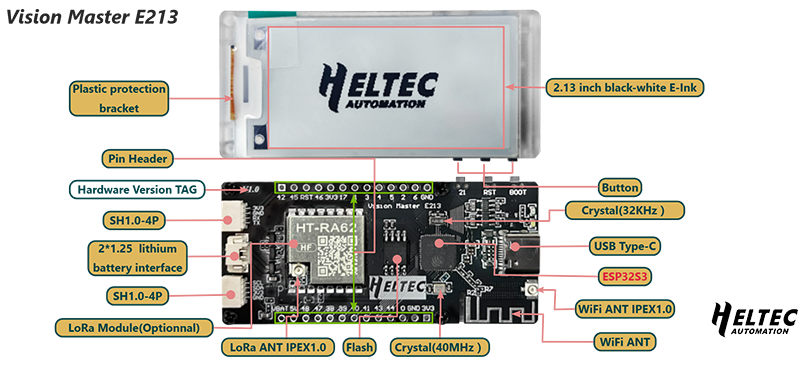

| Interface | Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); Wi-Fi ANT(IPEX1.0); 2*18*2.54 Header Pin; 2*SH2.0-4P sensor interface. |
| Battery | 3.7V lithium battery power supply and charging |
| Operating Temperature | -20 ~ 70 ℃ |
| Dimensions | 66.75*30.41*10mm |

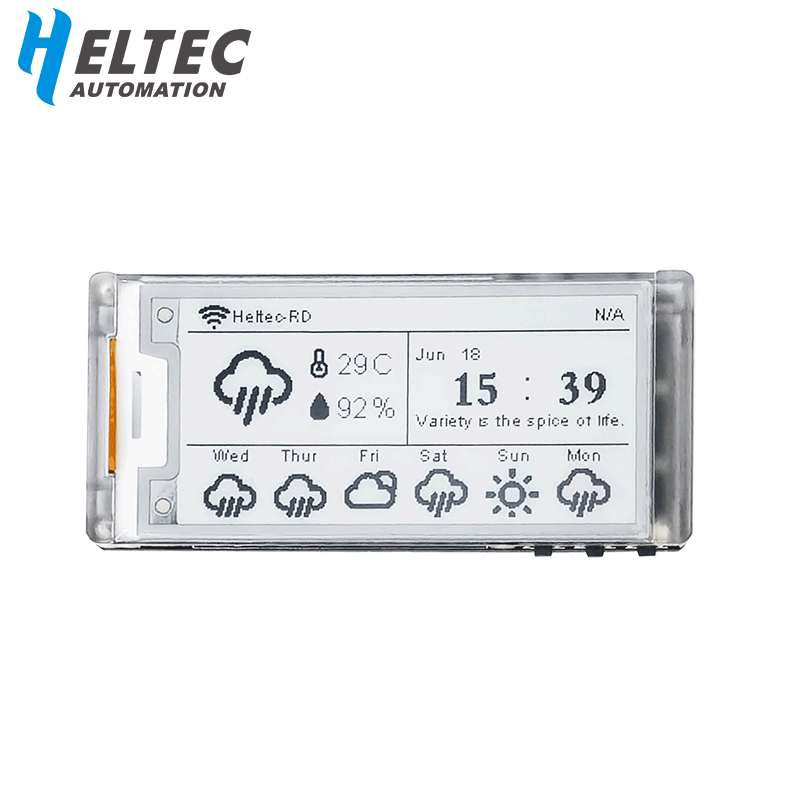

| Display | 2.13 Inch Black and White E-Ink Display Screen |
