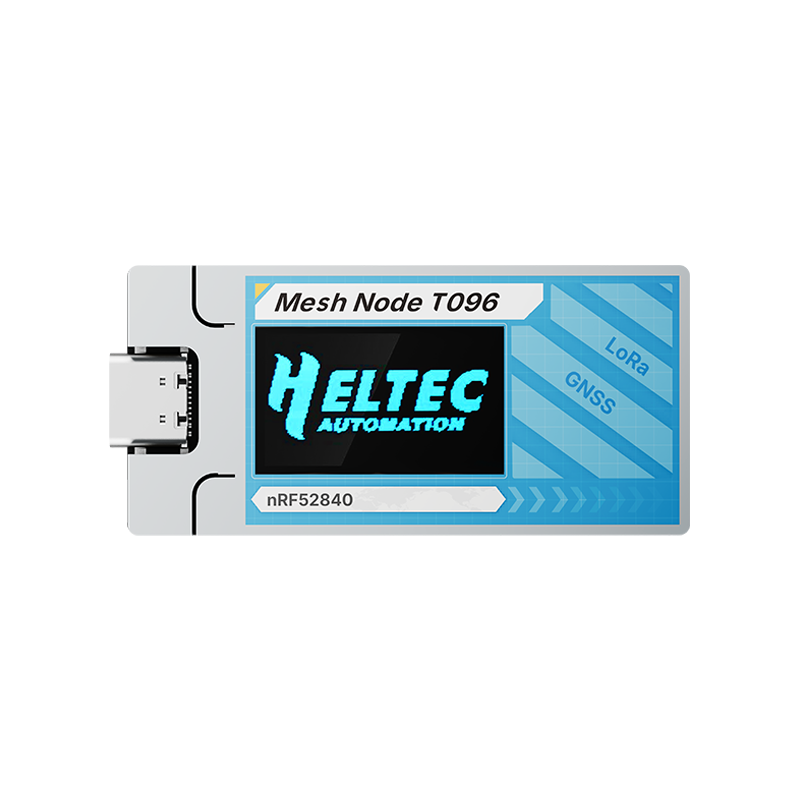

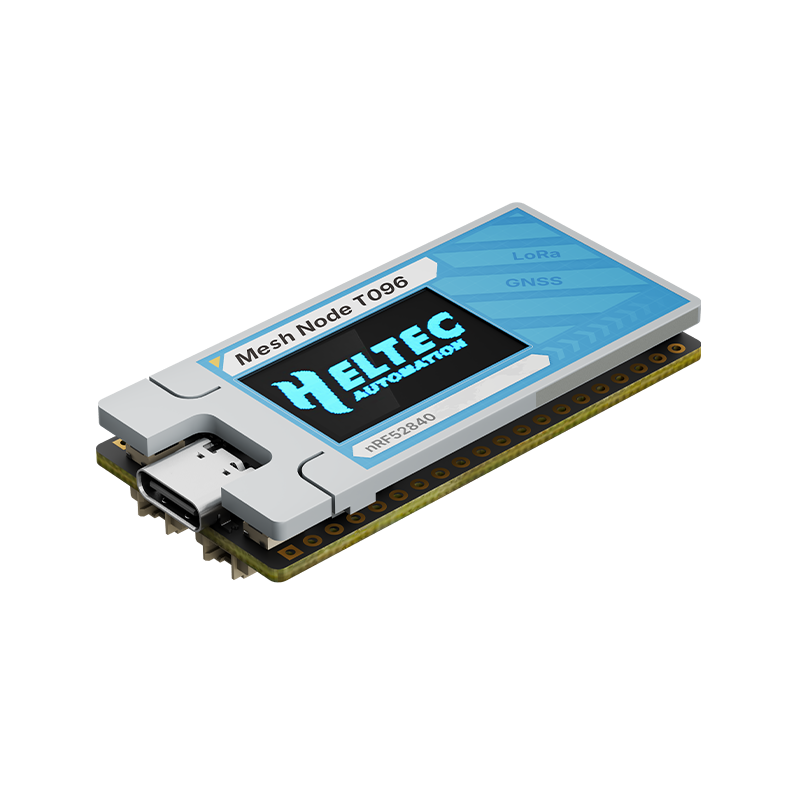

Heltec Mesh Node T096
Heltec Mesh Node T096
Regular price
R 899.00 ZAR
Regular price
Sale price
R 899.00 ZAR
Quantity
Couldn't load pickup availability

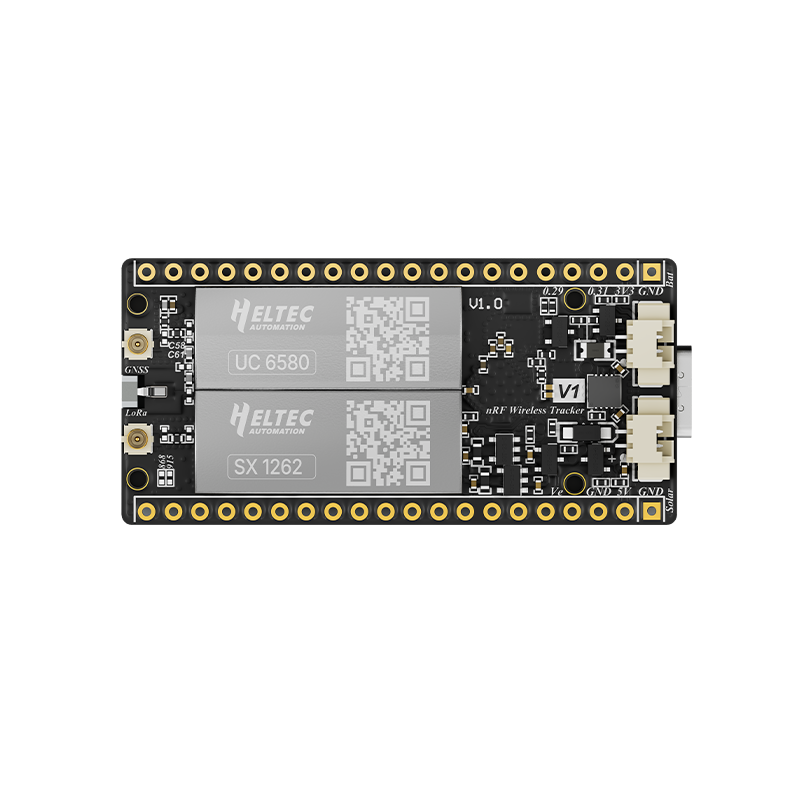

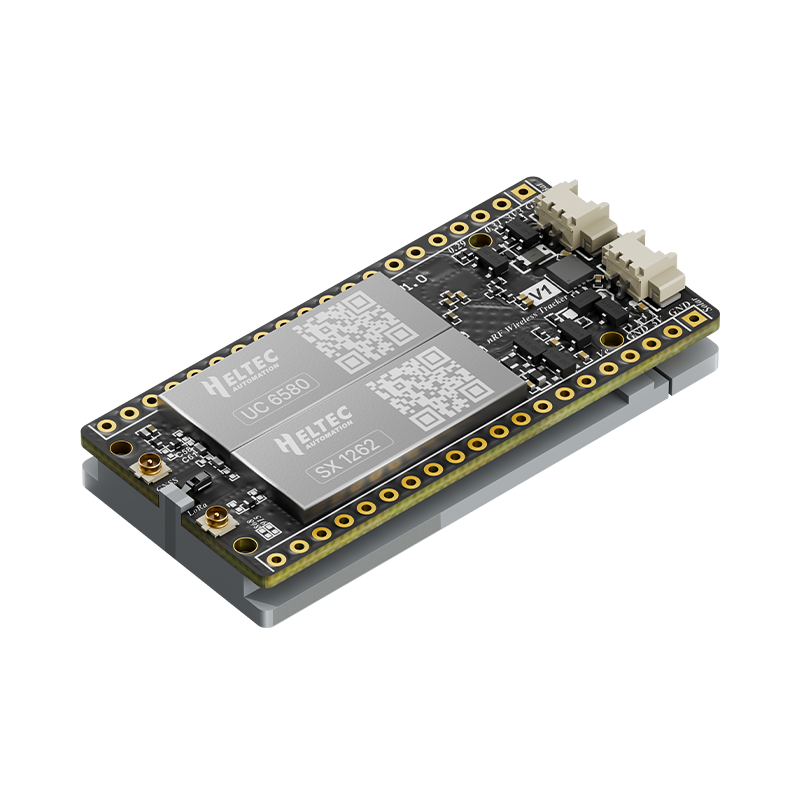

Mesh Node T096 is a low-power development board that integrates Bluetooth, LoRa, and GNSS. At its core, the nRF52840 MCU provides ample processing power and Bluetooth connectivity, while the SX1262 LoRa transceiver—integrated with PA—delivers transmit power of 28±1 dBm, ensuring exceptional range and link reliability. The UC6580 GNSS chip enables precise global positioning, making the device ideal for decentralized mesh networks, asset tracking, and remote sensing.
Specifications
| Parameters | Description |
|---|---|
| MCU | nRF52840 |
| LoRa Chip | SX1262 |
| GNSS Chip | UC6580(L1+L5) |
| Frequency | 863~928MHz |
| Max. TX Power | 28±1dBm |
| Bluetooth LE | Bluetooth 5, Bluetooth mesh |
| Hardware Resource | USB 2.0, 2 x LEDs, 2 x Buttons, 4 x SPI, 2 x TWI, 2 x UART, 4 x PWM, QSPI, I2S, PDM, QDEC Etc. |
| Interface | Type-C USB, 1.25-2P lithium battery connector, 1.25-2P solar panel connector, LoRa ANT (IPEX1.0), GNSS ANT (IPEX1.0), 2 x 13 x 2.54 Header Pin |
| Power Supply | USB-C 5V Lithium battery 3.7V( 3.3-4.2V ) |
| Operating Temperature | -20 ~ 70 ℃ |
| Dimensions | 52.00*25.40*10.26 mm |
Packing list
| Item | Quantity |
|---|---|
| Mesh Node T096 | x1 |
| LoRa Antenna | x1 |
| SH1.25×2 Battery Connector | x1 |
| Pin Header | x2 |
