Heltec
Heltec LoRa32 V3
Heltec LoRa32 V3
Regular price
R 699.00 ZAR
Regular price
Sale price
R 699.00 ZAR
Unit price
/
per
Couldn't load pickup availability
The OG LoRa node, used by millions of Meshtastic users worldwide.
Comes with everything you need to get started, including antenna, case, and display.

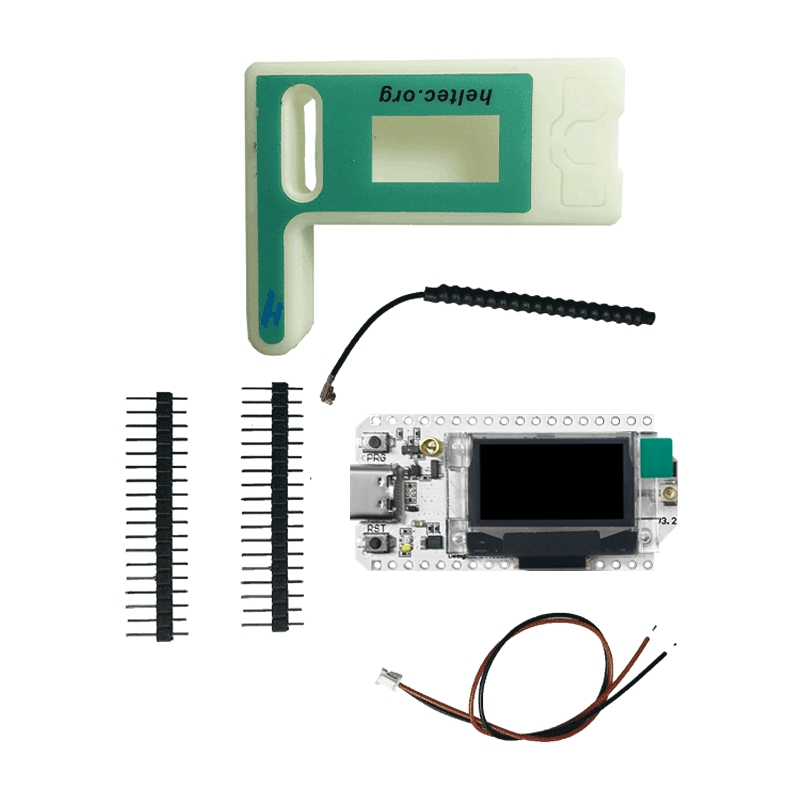

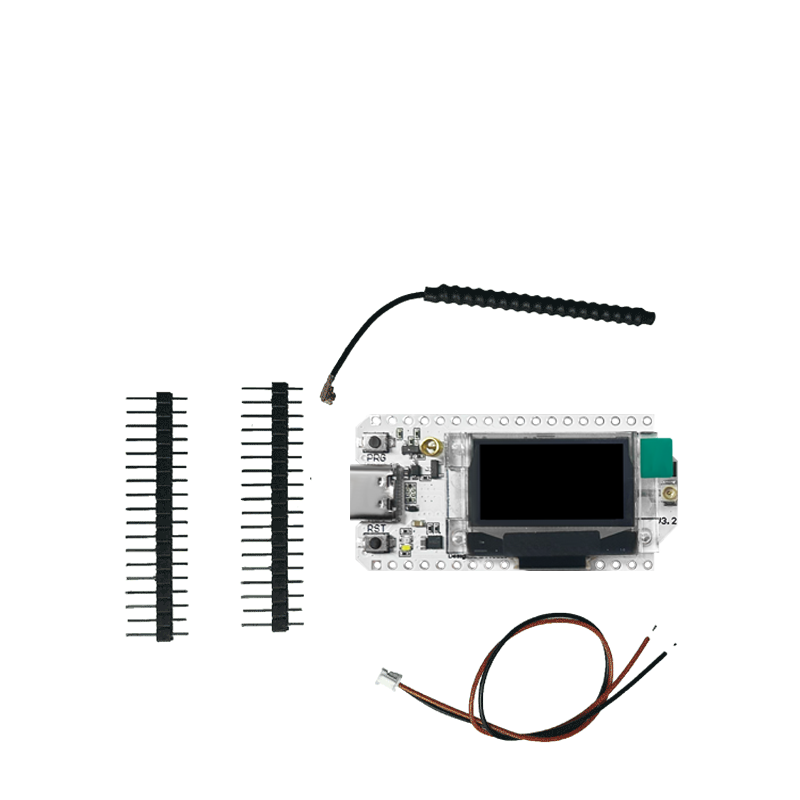

Includes:
WiFi LoRa 32 (V3) | x1 |
LoRa Antenna | x1 |
SH1.25×2 Battery Connector | x1 |
2.54*18 Header Pin | x2 |
Specifications
Parameters | Description |
---|---|
Master Chip | ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor) |
LoRa Node Chip | SX1262 |
USB to Serial Chip | CP2102 |
Frequency | 863~928MHz |
Max. TX Power | 21±1dBm |
Max. Receiving sensitivity | -134dBm@SF12 BW=125KHz |
Wi-Fi | 802.11 b/g/n, up to 150Mbps |
Bluetooth | Bluetooth 5 (LE) |
Hardware Resource | 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc. |
Memory | 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash |
Interface | Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*18*2.54 Header Pin |
Battery | 3.7V lithium battery power supply and charging |
Operating Temperature | -20 ~ 70 ℃ |
Dimensions | 50.2 * 25.5* 10.2 mm |
