Faketec V3 DIY Board for Meshtastic

Build the cheapest nRF52840 based Meshtastic Node on the planet.

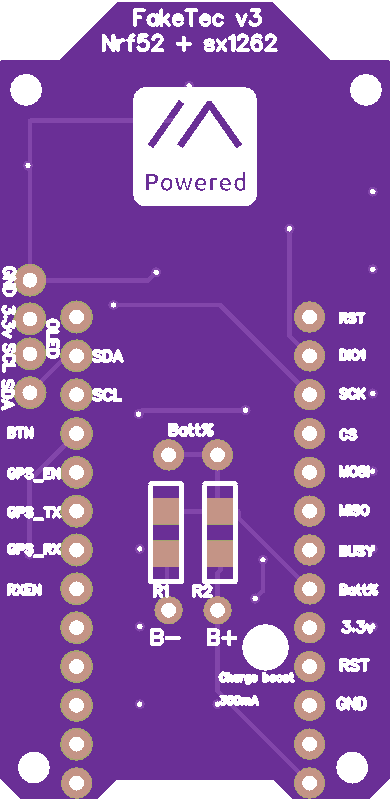

The Faketec V3 board is specifically designed to build a Heltec V3-sized Meshtastic Node, but by using a nRF52-based board.

Compatible with the ProMicro Dev Board V2 and a range of LoRa radios that have the same form factor as the Heltec HT-RA62.

The V3 variant adds power and select button traces
Features:

• Small size based on Heltec v3

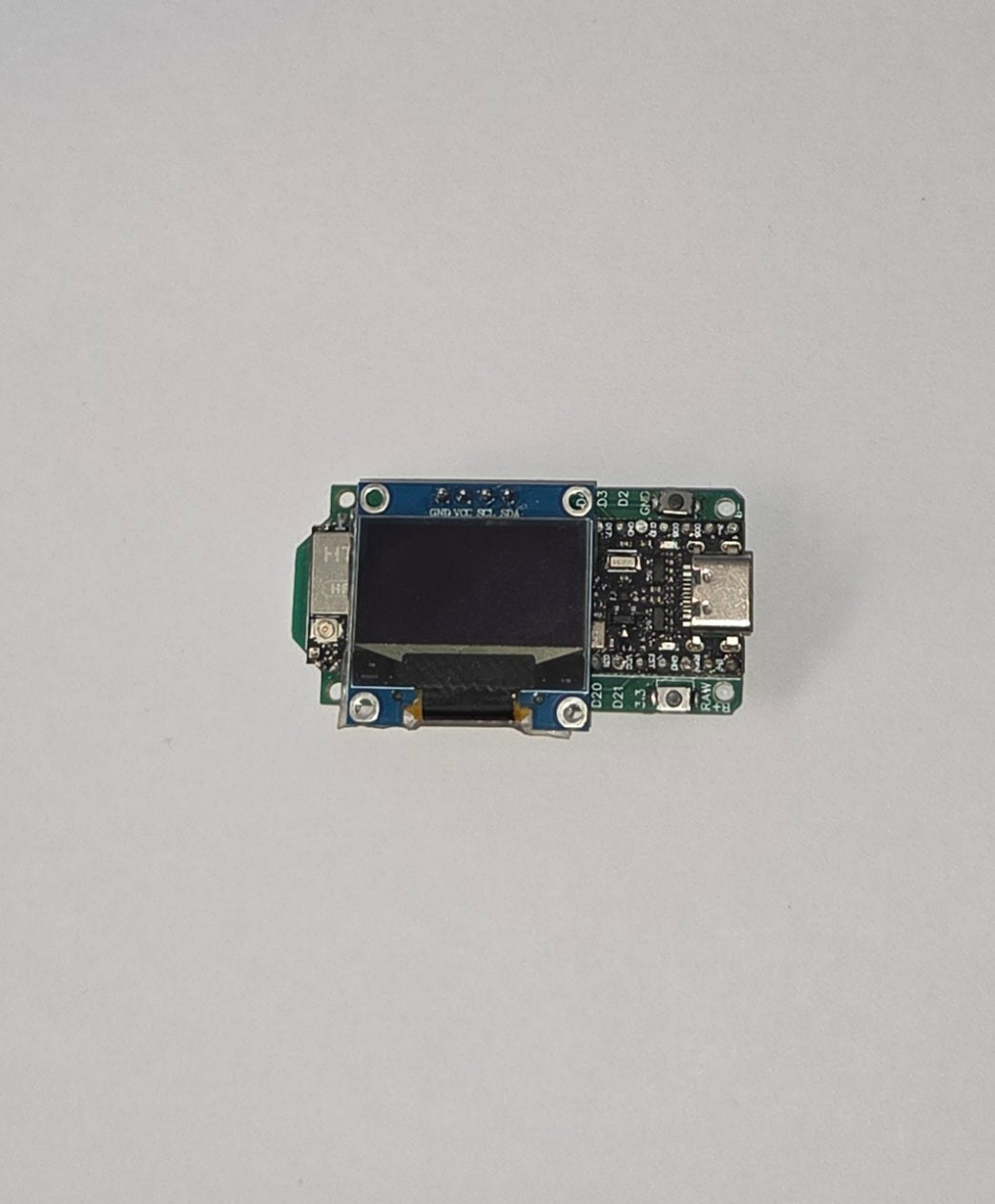

• i2c side ports ready to connect an OLED SSD1306 screen.
• Battery sensing: You can use SMD resistors or through-hole.
• 2mm mounting holes.
• Compatible with HT-RA62 / RA-01SH LoRa modules (and others with a similar footprint).
• Refer to this link for more information and required materials: https://github.com/gargomoma/fakeTec_pcb

  Check selection when ordering.
  PCB Only and Full Kit options are available

  Full Kit Includes:
• FakeTec PCB
• HT-RA62 Radio (868MHz)

• ProMicro nRF52840 Dev Board (Main Board)

• 2x 1M Ohm Resistors
• 2x Buttons


FakeTec Kit no longer includes a LoRa antenna. Add a pigtail + antenna to your cart if you don't have an 868MHz antenna.

Due to the specialized nature of SMD soldering, no warranty is provided on products that have to be DIY Soldered.

All components are tested before shipping.
If you have any issues please send us a mail: info@smartcasa.co.za
