Elecrow ThinkNode M9 - All in One MeshCore Device
Elecrow ThinkNode M9 - All in One MeshCore Device
Couldn't load pickup availability

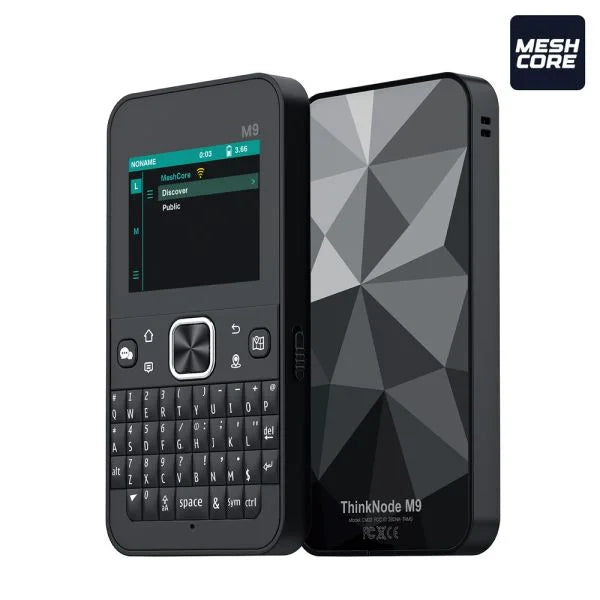

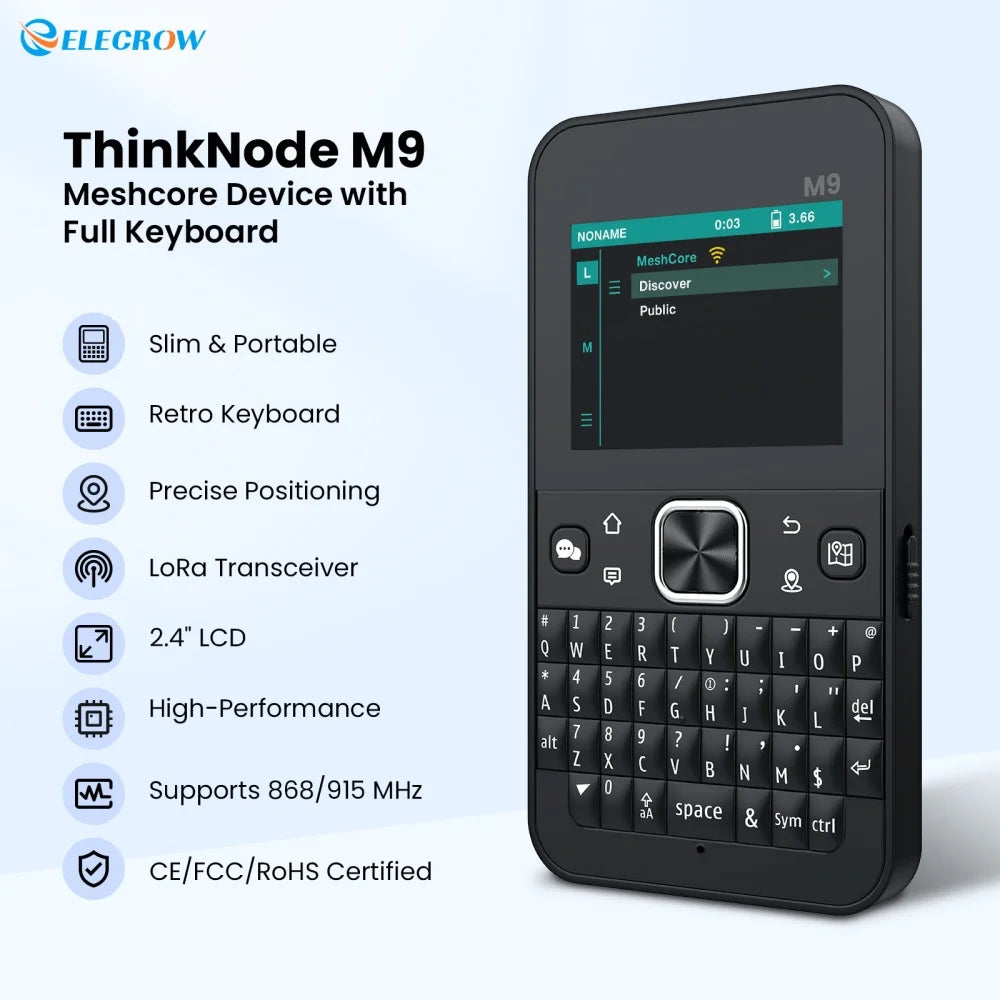

The M9 is a standalone wireless communication device designed in the form factor of a mobile phone, completely eliminating the cumbersome process of connecting a mobile phone to an external LoRa Node via Bluetooth, a common feature in traditional solutions. It integrates a display, keyboard, LoRa communication, and positioning functions into a mobile phone-sized body, achieving a complete "single-device, ready-to-use" experience.
Fully supported on MeshCore
Specification
|
Main Chip: ESP32-S3R8 |
|
|
Processor |
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz |
|
System memory |
512KB SRAM, 8M PSRAM, 384KB ROM |
|
Storage |
16GB (Built-in memory card) |
|
Development Language |
MicroPython, C/C++ |
|
Firmware |
MeshCore completely compatible |
|
Development Environment |
ESP-IDF, Arduino IDE, LVGL Library |
|
Configuration Interface |
Official MUI and mobile app |
|
Wireless Communication |
|
|
Bluetooth |
Bluetooth Low Energy and Bluetooth 5.0 |
|
WiFi |
Support 802.11a/b/g/n, 2.4GHz |
|
LoRa |
LR1110, Supports 868MHz |
|
GNSS Positioning |
Real-time trajectory recording, supports location sharing, and simultaneously analyzes BeiDou, GPS, Galileo, and GLONASS signals. |
|
Display |
|
|
Panel Size |
2.4inch |
|
Panel Type |
TFT-TN, LCD |
|
Resolution |
240(RGB)*320 |
|
Brightness |
200 cd/m² |
|
Touch |
None |
|
Hardware |
|
|
Interface |
Type-C socket, full-speed USB 2.0, for burning/charging. |
|
Keyboard |
Function area, navigation area, full keypad (QWERTY, 37 keys), RESET key (hidden) |
|
Switch |
Yes, toggle switch |
|
Antenna |

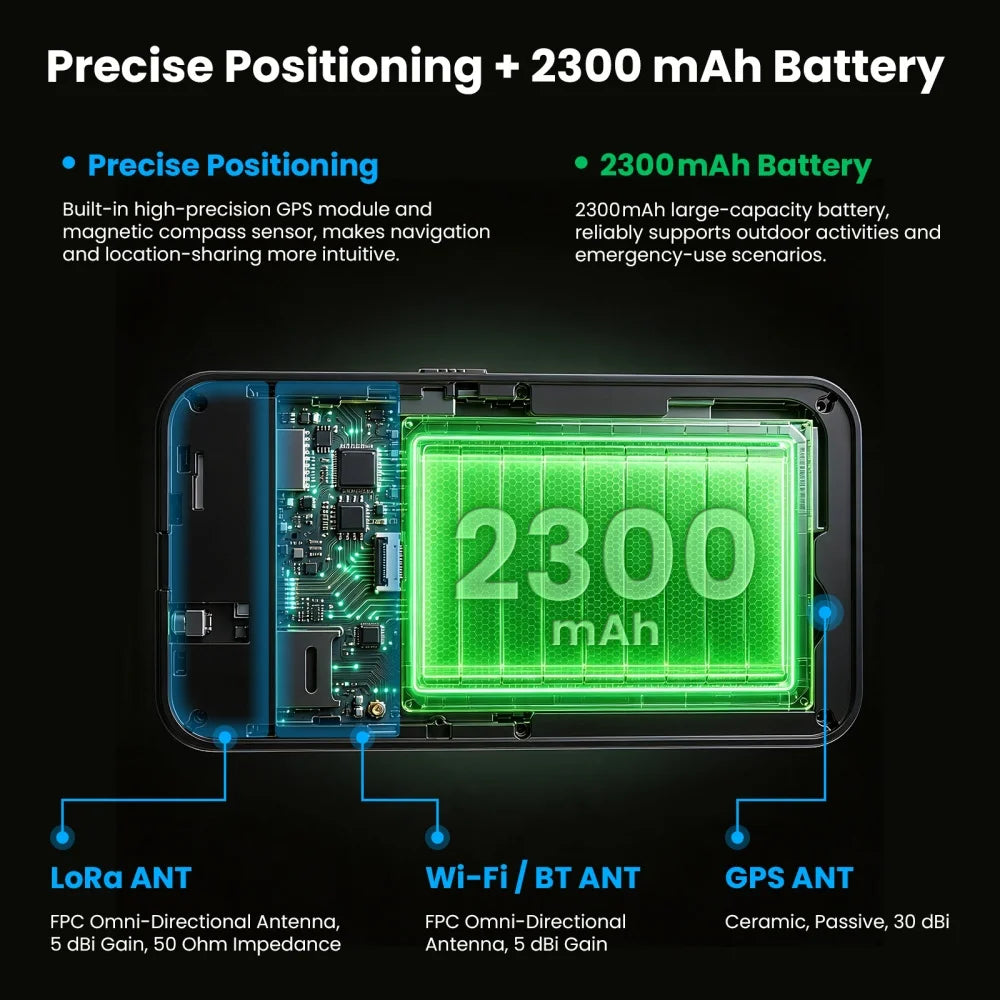

Built-in GPS Antenna, Wi-Fi/BLE Antenna and LoRa Antenna |
|
Battery |
|
|
Type |
Lithium-polymer battery |
|
Capacity |
2300mAh/3.8V |
|
Form |
Rectangular |
|
Protection |
With protection board, over-discharge, over-charge, etc. |
|
Other |
|
|
RTC clock |
Enables faster warm-up and time synchronization |
|
Magnetic compass |
Real-time display of user orientation. |
|
Buzzer |
Audio alerts and feedback |
|
Power Input |
Type-C |
|
Enclosure Material |
Plastic Material |
|
Installation Method |
Rear-Mount, Wall-Mount, Desktop |
|
Operating temperature |
-10~60℃ |
|
Storage temperature |
-20~70℃ |
|
Relative Humidity |
10%–90% (non-condensing) |
|
Size |
126*67*10.3mm |
|
Net Weight |
123g |
