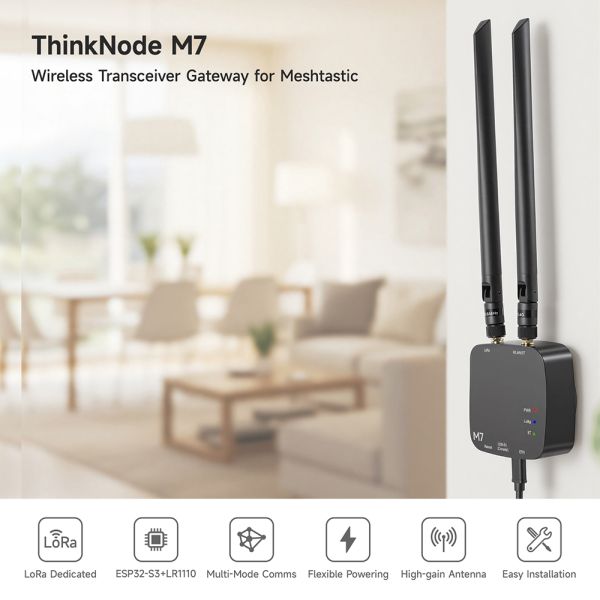

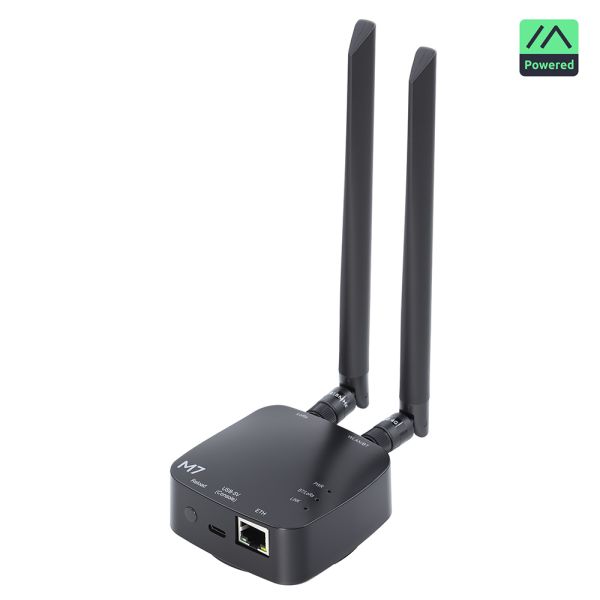

Elecrow ThinkNode M7 Gateway
Elecrow ThinkNode M7 Gateway
Couldn't load pickup availability
The ThinkNode M7 is our pick for a feature rich base station.
It supports POE power, Wi-Fi, Bluetooth and USB-C. Allowing for maximum power and communication flexibility.
Place it on your desk or build it into a outdoor enclosure and power/communicate via ethernet.
Fully supported on Meshtastic and MeshCore.
IEEE 802.3af power supply required for POE operation
SMA antenna connectors are RP-SMA
Specification
|
Main Chip: ESP32-S3 |
|
|
Processor |
Equipped with a high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz |
|
System memory |
512KB SRAM、8M PSRAM |
|
Storage |
4M Flash, 384KB ROM |
|
Development Language |
MicroPython, C/C++ |
|
Development Environment |
ESP-IDF, Arduino IDE |
|
Configuration Interface |
Meshtastic/MeshCore Official App |
|
Maximum distance |
8-10KM |
|
Wireless Communication |
|
|
Bluetooth |
Bluetooth Low Energy and Bluetooth 5.0 |
|
WiFi |
Support 802.11a/b/g/n，2.4GHz |
|
LoRa |
LR1110, Supports EU868MHz |
|
Hardware |
|
|
Ethernet Interface |
RJ45, WAN/LAN, 10/100 Mbps, PoE supported |
|
USB interface |
Type-C: Debugging/Power Supply Port, 5V/1A |
|
LoRa Antenna Connector |
RP-SMA Female Connector, External Antenna |
|
Reload Button |
Device Restart, Configuration, Factory Reset |
|
Boot Button |
Enter programming mode; the device communicates with the programming tool (internally reserved, hidden). |
|
LED Light |
PWR Status, LoRa Signal, BT Indication |
|
Other |
|
|
Power Input |
Supports USB 5V/1A or Ethernet power supply (37V–57V DC [IEEE 802.3af]) |
|
Material |
Plastic Material |
|
Installation Method |
Rear-Mount, Wall-Mount, Desktop |
|
Operating temperature |
-20~70℃ |
|
Storage temperature |
-40~80℃ |
|
Relative Humidity |
10%–95% @ 40°C (non-condensing) |
|
Size |
74*74*33mm (Without Antenna) |
|
Net Weight |
80g |
