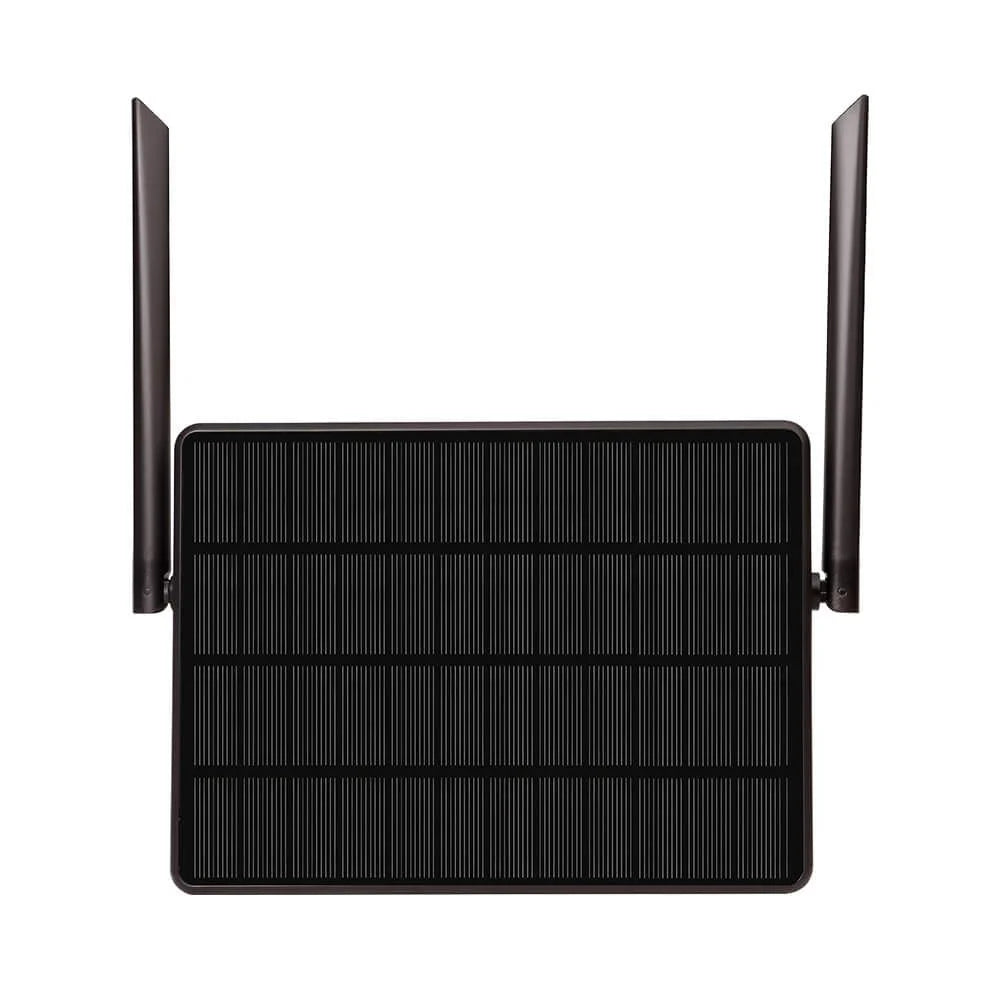

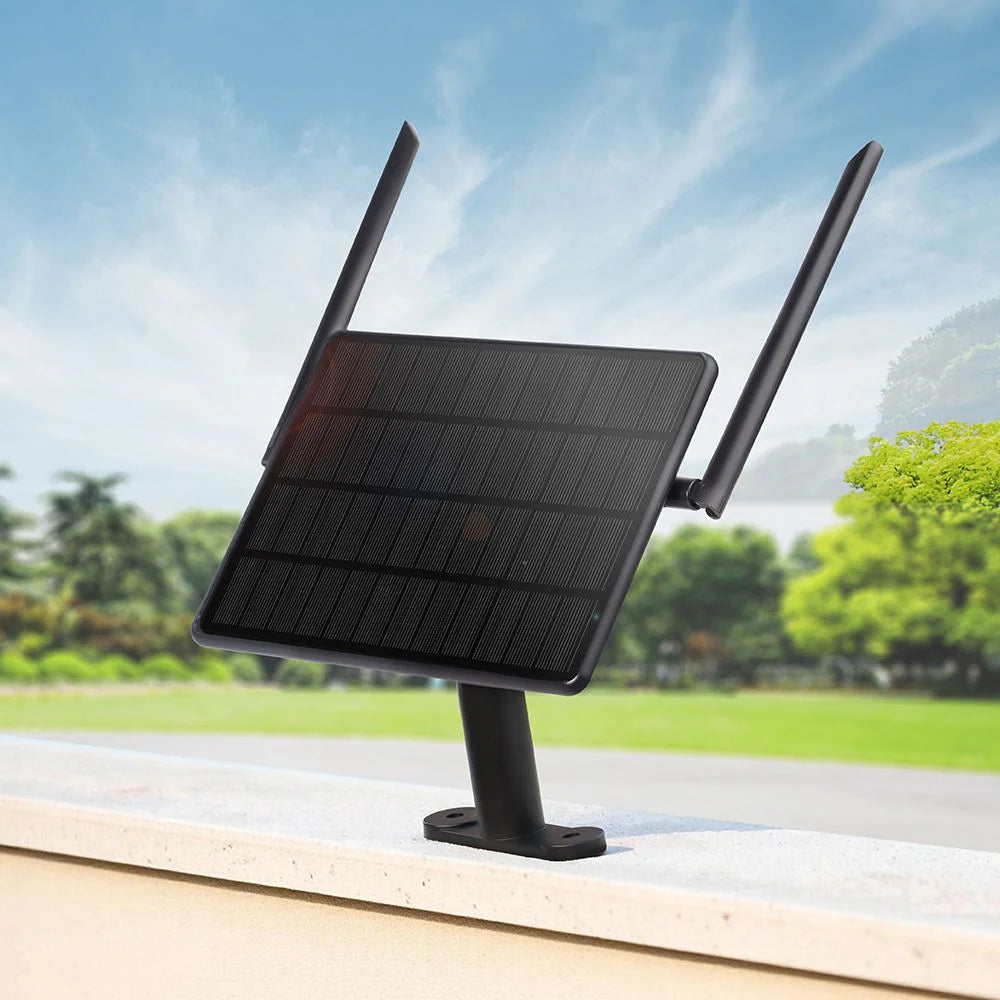

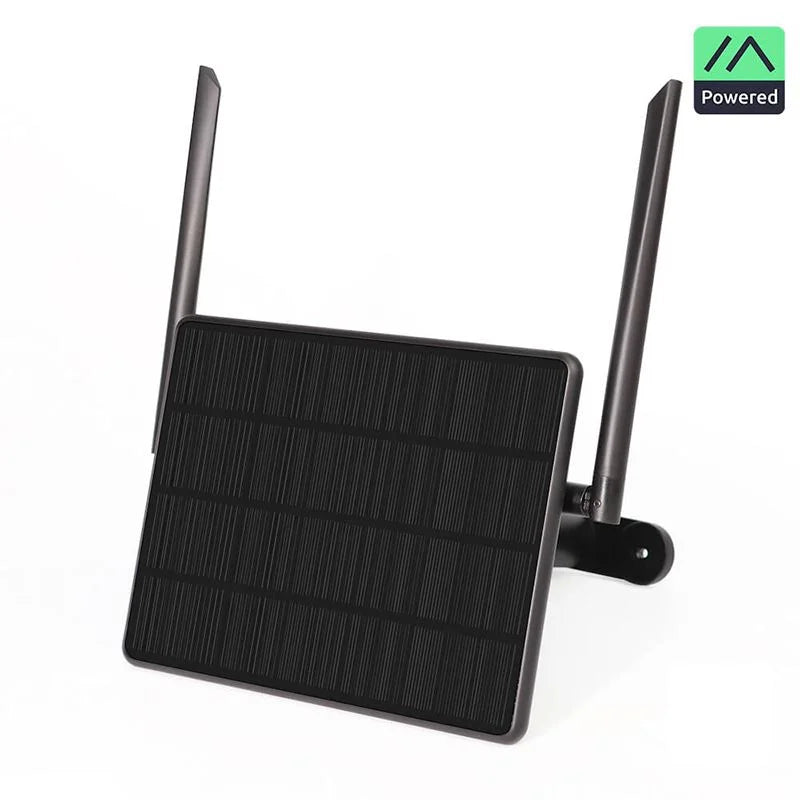

Elecrow ThinkNode M6 Solar Node

The ThinkNode M6 Outdoor Solar Powered Node is a high-performance Meshtastic IoT device designed for harsh outdoor environments and industrial scenarios.

It features the nRFLR1262 LoRa transceiver module and the nRF52840 core processor, supporting Bluetooth and LoRa dual-mode connectivity to ensure stable signal coverage. Equipped with a 6W solar charger and two 18650 batteries, it offers all-weather operation. Its IP65 waterproof housing allows operation in extreme environments ranging from -20°C to 60°C. It offers flexible mounting options with a included wall mount.

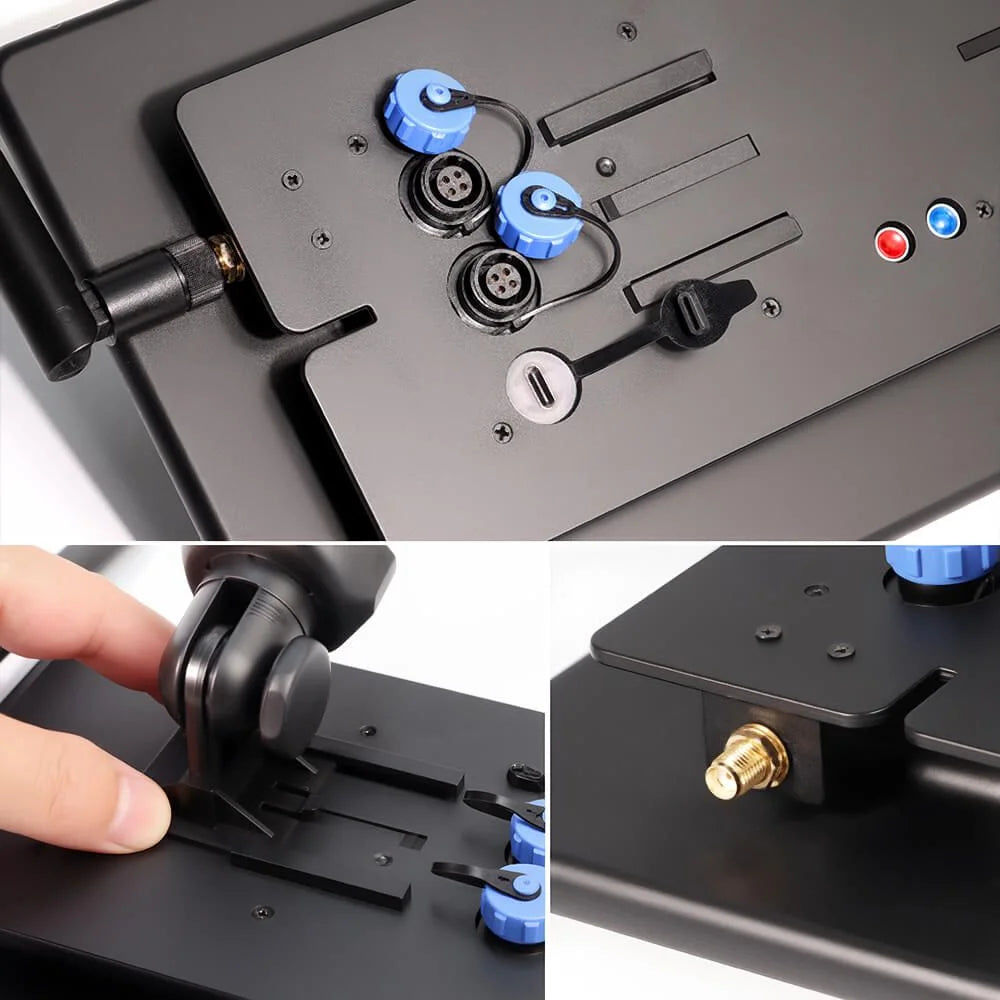

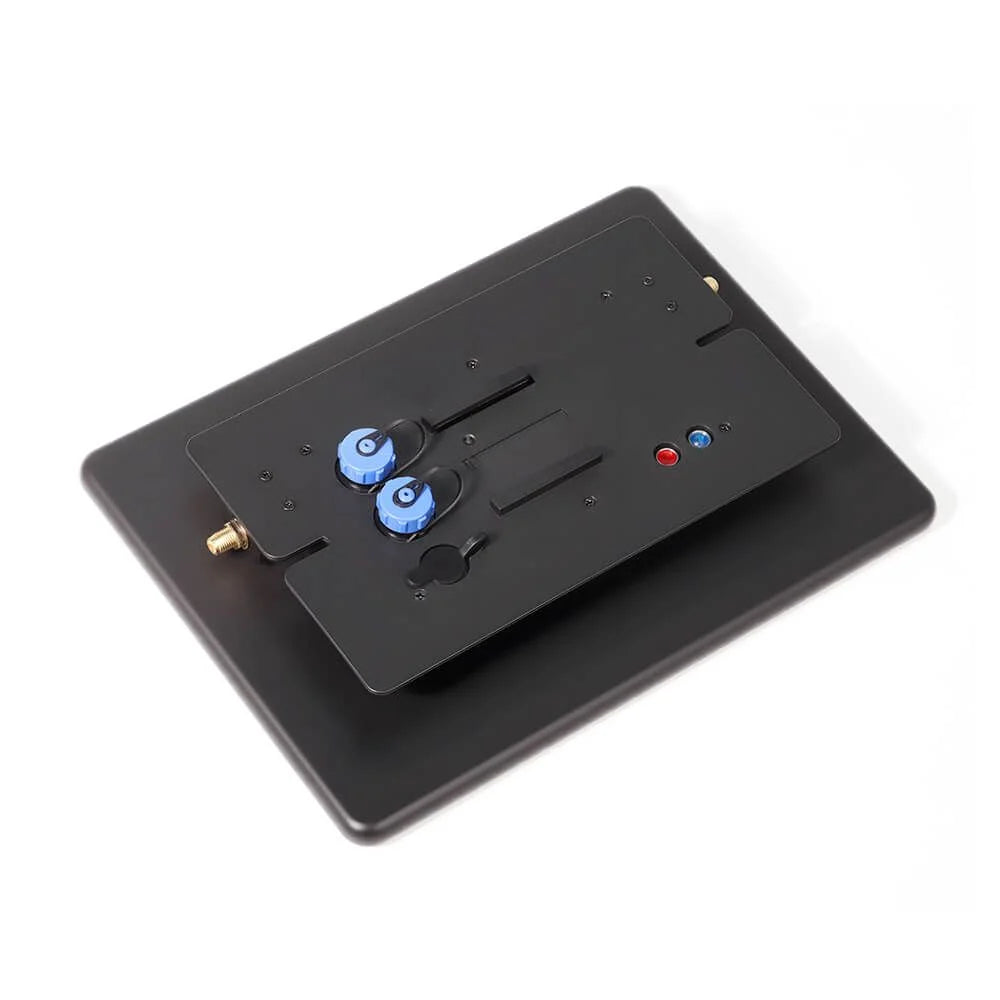

ThinkNode M6 comes with dual SP11 waterproof aviation connectors and supports long-range communication, precise positioning, and low-power operation. It can be used out-of-the-box, and rapidly deployed, ideal for Meshtastic network expansion, remote monitoring, outdoor emergency response, and off-grid communications, especially in remote areas with limited outdoor network access.

SP11 waterproof connectors can be used for UART and I2C connected sensors.

Specification

Main Processor - (Nordic nRF52840）

CPU/SoC - 32-bit Arm® Cortex™-M4 CPU at 64 MHz with FPU (Floating Point Unit)

System Memory - 256 KB RAM

Storage - 1 MB Flash memory, 16M Flash

Supports the Meshtastic protocol and comes pre-flashed with firmware

LoRa Transceiver - The Semtech SX1262 sub-GHz wireless transceiver provides low-power, long-distance transmission, configured for 868MHz.

Wireless Communication

Bluetooth - Bluetooth Low Energy and Bluetooth 5.4

LoRa - SX1262 LoRa Transceiver, EU 868MHz（External antenna）

USB Interface - Type-C, External, for power supply and burning

Sensor Interface 1 - For UART sensor communication, External, SP11 interface

Sensor Interface 2 - For IIC sensor communication, External, SP11 interface

LoRa Antenna Interface - External, RP-SMA Interface

GPS Antenna Interface - External, RP-SMA Interface

Button - Function Button, Reset Button

LED Indicator - Power supply, GPS/LoRa indication

RTC - Yes, support interrupt/wake-up

BatteryType - 2x 18650 lithium-ion batteries, Panasonic

Capacity - 7000mAh

Voltage - 3.7V~4.2V

Protection Explosion-proof design, all-steel housing, and battery safety valve

Mainboard input - 5V/1A, Type-C port

Solar Panel Output - 6W

Power consumption (OFF) - 21uA

Power consumption (transmitting and receiving) - 192mA with GPS on, 147mA with GPS off

Installation method

Wall mount, bracket, through rod, U-shaped clamp

Environmental level - IP65

Operating Temperature - -20~60°C

Storage Temperature - -30~70 °C

Relative humidity - 10% to 90% RH (Relative Humidity) (non-condensing)

Size - 210*156*42mm (excluding antenna and bracket)

Net weight - 530g
